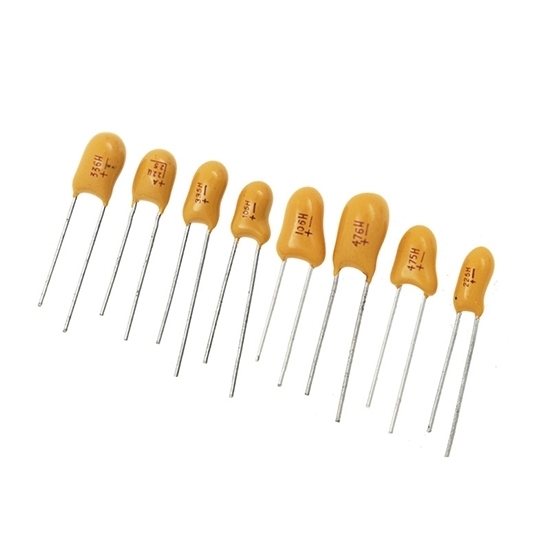

100μF 25V DIP Tantalum Capacitor

DIP tantalum capacitor with 100μF and 25V voltage. 100μF 25V tantalum capacitor is small in size, easy to carry and operate.

Features:

• Small volume and small capacity error
• Wide temperature range, high temperature resistance
• Long life, high insulation resistance, small leakage current
• Equivalent series resistance (ESR) has good high frequency performance

Specification:

• Model: ATO-TC-100UF25DIP
• Capacitance: 100μF
• Rated Voltage: 25V
• Type: DIP
• Equivalent Series Resistance: 1
• Tolerance: 10%
• Working Temperature: -40 ℃— +125 ℃
• Lead Spacing: 2.54 mm
• Size: 1 mm
• Height Mounting (Maximum): 1 mm

DIP Tantalum Capacitor Dimension: (Unit: mm)

Tips: Tantalum Capacitors in Audio Circuits

Most of the coupling capacitors in the audio circuit are tantalum capacitors. Tantalum is easily oxidized in the air. Since tantalum is extremely easy to oxidize, tantalum capacitors have an automatic repair function. Durability and high reliability are the characteristics of tantalum capacitors. The distance between the two plates of the tantalum capacitor is very close. This leads to fast charging and discharging of tantalum capacitors. These characteristics are the decisive factors for tantalum capacitors to become suitable for high-frequency, low-current, and fast-response circuits. Tantalum capacitors are very sensitive and charge and discharge very quickly. Tantalum capacitors are often used in audio circuits for high-end audio, mainly high-frequency circuits. Tantalum capacitors reduce the loss of weak and small currents for high-frequency audio, thus improving the sound quality of the audio.
