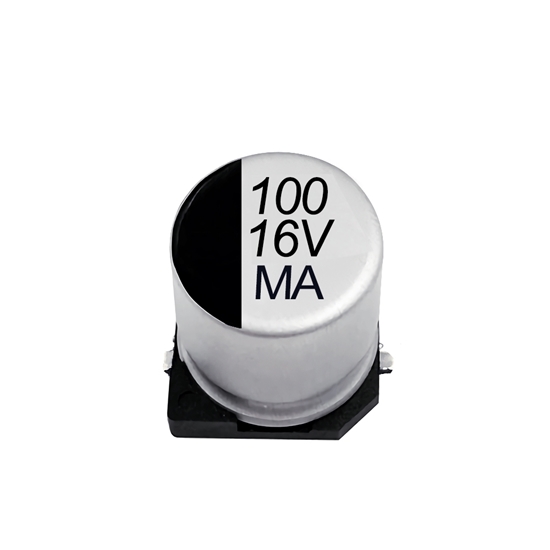

100μF 16V SMD Electrolytic Capacitor

$1.12

Reasonable price SMD aluminum electrolytic capacitor with 100μF capacity, 16V rated voltage for sale online. High voltage SMD electrolytic capacitor with ±20% cap. tolerance, 20% dissipation factor. Surface mount electrolytic capacitor is used in various electronic products with compact structure, small volume and high precision.

SKU: ATO-EC-HV101M016

This product has a minimum quantity of 100

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Reliable SMD electrolytic capacitor has low ESR and high ripple current, operating temperature is -55~105℃. 100μF SMD electrolytic capacitors with stable performance and high reliability and suitable for high density assembly.

Features

Endurance: 105℃ - 2000 hours
Low ESR and high ripple current
Vibration-proof (vP) version (up to 30g) available upon request
AEC-Q200 version available
High voltage, automotive 105°C type

Specification

Model		ATO-EC-HV101M016
Capacity		100㎌
Rated voltage		16V
Size		6.3*5.5 mm
Installation type		Surface mount
Operating temperature		-55~105℃
Cap. tolerance (∆C)		±20% (120Hz 20℃)
Dissipation factor (tanδ)		20%
Low temperature characteristic at 120Hz (Z ratio max.)		3 (Z-25℃/Z+20℃)
Leakage current (L_leak)		≤0.01CRV_Ror 3 ㎂ * after 2 minutes
Enduarance (105℃)	Test	2000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value
Shelf life (105℃)	Test	1000h
	∆C	≤20% of initial measured value
	tanδ	≤200% of specified measured value
	L_leak	≤ the specified measured value
Resistance to soldering heat (105℃)	∆C	Within ±10% of initial value
	tanδ	Less than specified value
	L_leak	Less than specified value

Dimension (mm)

Model	Dimension (mm)
ATO-EC-HV101M016	∅D	6.3
	L	7.7
	a	Max
	A	6.6
	B	6.6
	C	7.2
	W	0.5~0.8
	P±2	2.2

Tips: Working Principle of SMD Electrolytic Capacitor.

The two electrodes of the SMD aluminum electrolytic capacitor are respectively connected to the positive and negative electrodes of the power supply. After a while, even if the power supply is disconnected, there will still be residual voltage between the two pins. We say that the SMD aluminum electrolytic capacitor stores the charge. The voltage is established between the plates of the SMD aluminum electrolytic capacitor and the electric energy is accumulated. This process is called the charging of the SMD aluminum electrolytic capacitor. There is a certain voltage across the charged SMD aluminum electrolytic capacitor. The process of releasing the charge stored in the chip aluminum electrolytic capacitor to the circuit is called the discharge of the chip aluminum electrolytic capacitor.
