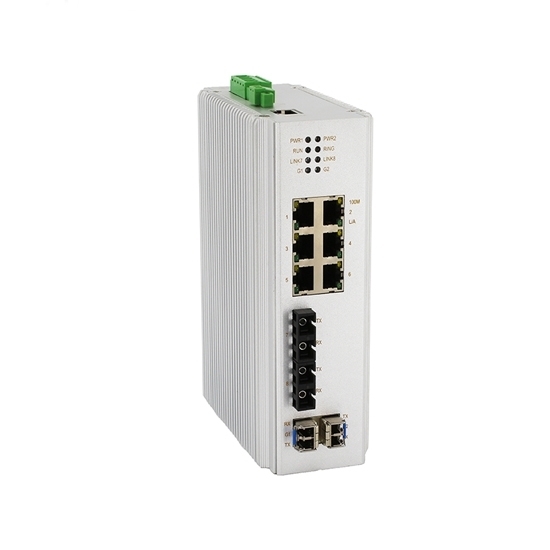

    10 Port Gigabit Managed Industrial Switch, Din Rail

    5 out of 5 based on 1 reviews | Write a review
    $746.15
    High speed 10-port Gigabit managed Ethernet switch, rugged din-rail mounting, a variety of port combinations to choose from, dual DC12V/DC24V/DC48V power input available, MW-Ring and STP/RSTP for network redundancy, supports broadcast storm suppression / ring self-healing / port VLAN.
    *
    *
    SKU: ATO-ES-SCOM7210
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High-performance Gigabit industrial Ethernet switch with 10 optional ports, support VLAN, multicast, QoS, MW-Ring and many other Layer 2 software features, user-friendly web console interface for easy configuration.

    Specification

    Model ATO-SCOM7210
    Software Performance
    Redundancy Protocol Support MW-Ring and the recovery time<20 ms.
    Support STP/RSTP
    Multicast Routing Support IGMP snooping/ IGMP v1/v2/v3
    Support GMRP
    Support static multicast
    Management and Maintenance Support Console and Web management methods
    Support SNMP v1/v2c
    Support unified PC software management
    Technical Specifications
    Ethernet Standard IEEE802.3-10BaseT
    IEEE802.3u-100BaseTX/100Base-FX
    IEEE802.3x-Flow Control
    IEEE802.3z-1000BaseLX
    IEEE802.3ab-1000BaseTX
    IEEE802.1ab
    IEEE802.1D-Spanning Tree Protocol
    IEEE802.1w-Rapid Spanning Tree Protoco
    IEEE802.1Q -VLAN Tagging
    IEEE802.1p -Class of Service
    IEEE802.1X-Port Based Network Access Control
    Switch Properties
    Priority Queue 4
    VLAN ID 1-4096
    IGMP Groups 256
    MAC Table 8k
    Switch Bandwidth 5.8Gbps
    Switch Delay <5μs
    Interface
    Gigabit Ports Port numbers: 2
    Connector: SFP for fiber port (LC, single or multi-mode) or adaptive
    10/100/1000M-Tx module
    Baud rate:1000Base-LX(fiber port), adaptive 10/100/1000M-Txport
    10/100Base Port Port numbers: 8
    Connector:9 fixed FX (single/multi-mode; SC/FC/ST) or RJ45 port
    Baud rate:100Base-FX; adaptive 10/100Base -Tx
    Console Port RS232/RJ45
    Terminal Block for
    Power Input
    5.08mm terminal block
    Terminal Block for Relay Alarm 5.08mm terminal block, 1A@24VDC
    Communication Distance
    Twisted-pair 100m (CAT5/CAT5e cable)
    Multi-mode Fiber Gigabit multi-mode: 850nm 550m
    10/100Base multi-mode: 1310nm 2km
    Single-mode Fiber Gigabit single mode: 1310nm 20km
    10/100Base single mode: 1310nm 20/40km; 1550nm 60/80km
    LED Indicator Lights
    Front Panel LED Port light: LINK/ACT;SPEED; Gx
    Running light: RUN
    Power LED: PWR1/PWR2
    Ring LED: RING
    Power Requirements
    Power Input DC110-220V (DC110~370V range) or AC100-240V (AC85~264V range)
    DC12V/DC24V/DC48V available
    Full-load Consumption <10W
    Overload Protection support
    Inversed Protection support
    Redundancy Protection support
    Working Environment
    Operating Temperature -40°C~85°C
    Storage Temperature -40°C~85°C
    Ambient Humidity 5%~95% (non-condensing)
    Physical Characteristics
    Shell IP40 protection, aluminum alloy shell
    Installation 35mm din rail mounted installation
    Dimension 56mm x 182mm x 128mm
    Weight 1.2kg
    Industry Standard
    EMC EN61000-4-2(ESD), Level 4
    EN61000-4-3(RS), Level 4
    EN61000-4-4(EFT), Level 4
    EN61000-4-5(Surge), Level 4
    EN61000-4-6(CS), Level 4
    EN61000-4-8, Level 5
    Impact IEC60068–2-27
    Falling IEC60068-2-32
    Shock IEC60068-2-6

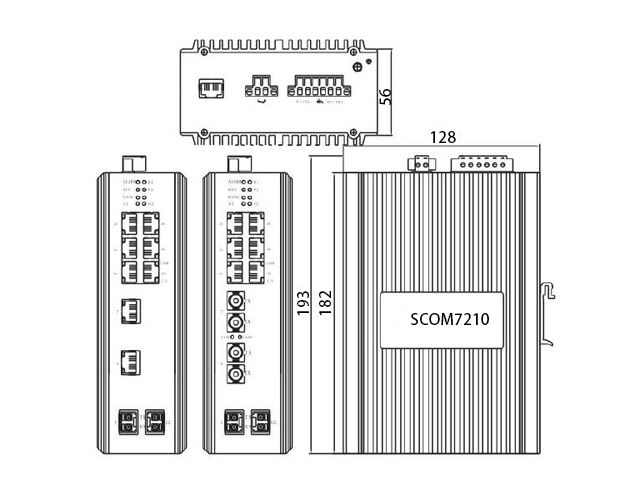

    Dimensional Drawing (mm)

    10 port gigabit managed industrial ethernet switch dimension

    Tips: Notes for using industrial Ethernet switches
    1. Do not place the switch near water source or wet place.
    2. Do not put anything on the power cable.
    3. In order to avoid fire, do not knot or wrap the cable.
    4. Power connectors and other equipment connectors need to be firmly connected, and often check the solidity of the line.
    5. Keep the fiber socket and plug clean. Do not look directly at the section of the fiber when the equipment is working.
    6. Pay attention to the equipment cleaning, if necessary, wipe it with a cotton cloth.
    7. When the equipment fails, do not repair it yourself for safety reasons.
