    10 kW Air Cooling BLDC Motor For Electric Vehicle

    $2,108.57
    High efficiency 10 kW bldc motor for electric vehicles, small air-cooled brushless motor with rated voltage of 48V/72V/96V/120V, rated speed of 2000-6000rpm. Air-cooled brushless DC motors have the advantages of small size, compact design, water resistance, and long service life.
    *
    SKU: ATO-EVA-10000
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Buy online an air-cooled brushless DC motor for electric vehicles with 10 kW power, 72V rated voltage, air-cooled brushless DC motor rated at 2000-6000 rpm (customizable) for cars, motorcycles, golf carts, ATVs, UTVs and yachts.

    Specifications

    • Model: BLDC-HPM-10000A
    • Voltage: 48V/ 72V/ 96V/ 120V
    • Rated Power: 8 kW-20 kW
    • Rated Current: 245A/165A/125A/95A
    • Max Phase Current: 500A/500A/400A/300A
    • Protection Class: IP54
    • Cooling Method: Air-cooled
    • Efficiency: 91%
    • Phase Resistance (Milliohm): 3.1/48V; 6.0/72V; 18.0/120V
    • Phase Induction(100KHZ): 34uH/48V; 77uH/72V; 252uH/120V
    • Rated speed: 3700 rpm
    • Casing: Alu Smartum
    • Length (height): 170mm
    • Diameter: 206mm
    • Weight:17 kg

    Features

    • 10 kW brushless DC motor has a compact design, water resistant, stainless steel shaft and self-cooling fan.
    • An air-cooled brushless motor is easy to build and requires no additional equipment.
    • If you want to build an electric motorcycle with plenty of air to provide cooling air, the cooling system will be your best choice.

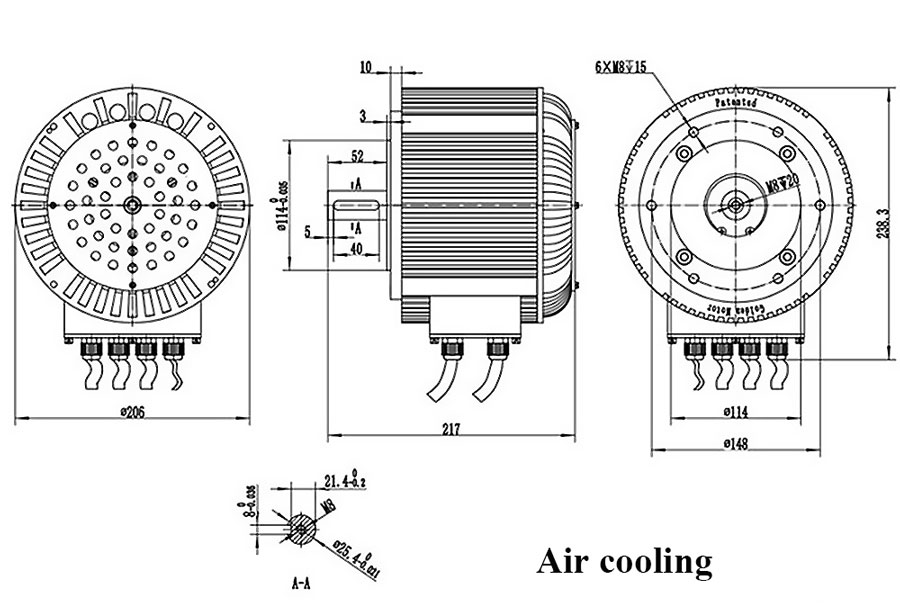

    Dimensions (Unit: mm)

    10 kW bldc motor for electric vehicle air cooling dimension

    Applications

    10 kW brushless DC motors are suitable for cars, motorcycles, golf carts, ATVs, UTVs and yachts.

    Brushless motor for eletrical car-application

    Tips: 10 kW air-cooled brushless motor working principle

    Uncooled motors distribute heat by convection to the machine housing in which they are mounted and to the surrounding environment. 10 kW air-cooled motors have a fan that blows air onto the motor housing, thus cooling it. Air-cooled motors have a fan that blows air onto the motor housing, thus cooling it. Fluid-cooled motors are cooled by water or oil. The cooling channels that flow through the motor.
