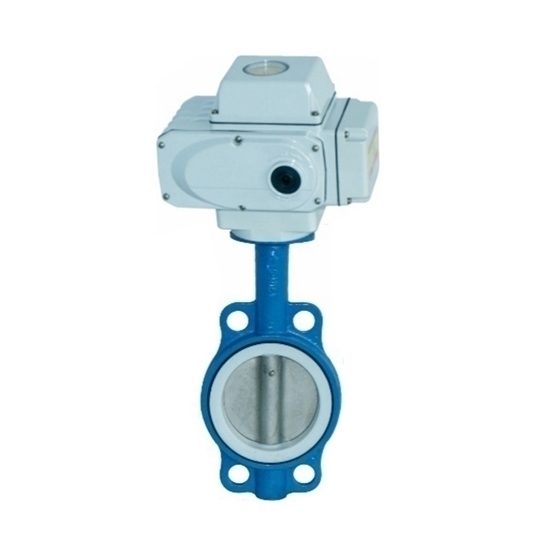

    10" Electric Wafer Butterfly Valve

    $1,342.99
    Industrial electric actuated butterfly valve for sale at factory price. Comes with double acting electric actuator, optional 110V AC, 220V AC, 380V AC, 24V DC power supply. 10 inch (DN250) port size, body material of cast iron with stainless steel disc and EPDM seat. Electrically operated butterfly valve can control water, air, gas, oil and other liquid at -10 °C to 120 °C working temperature.
    *
    SKU: ATO-EBV-250WF
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Factory price 10 inch electric butterfly valve is equipped with an aluminum alloy electric actuator to work. Our electric actuated butterfly valve can work at high temperature below 120 °C, which is a reliable device for flow control.

    Specification

    Butterfly Valve Model ATO-EBV-250WF
    Media Water, Air, Gas, Oil, Liquid, etc.
    Butterfly Valve Type Wafer Type
    Port Size 10 inch (DN250, 250mm)
    Body Material Cast Iron
    Disc Material Stainless Steel (SS)
    Seat Material EPDM
    Working Temperature -10 °C to 120 °C
    Electric Actuator Model ATO-KLST-60
    Frequency 50/ 60Hz
    Power Supply (Optional) 110V AC, 220V AC, 380V AC, 24V DC
    Actuator Input 4-20mA DC
    Actuator Type Double Acting
    Output Torque & Response Time 150N.m, 9s
    250N.m, 15s
    400N.m, 20s
    600N.m, 30s/ 60s
    Actuator Material Aluminum Alloy

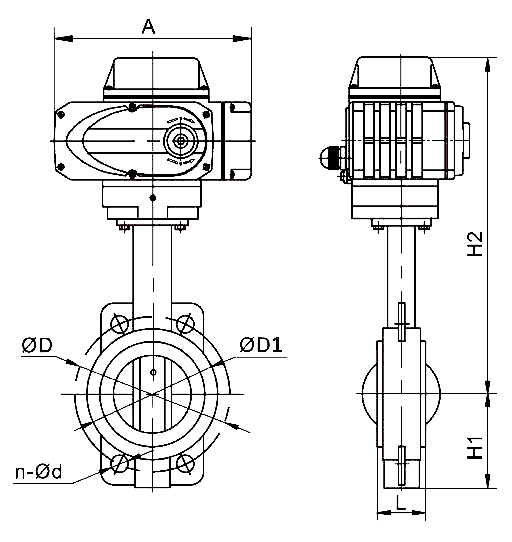

    Wafer Butterfly Valve Body Dimension (Unit: mm)

    Electric wafer style butterfly valve dimension

    DN L H1 H2 A D D1 N-φd
    250 65.5 203 532 255 357 319 4-29

    Details

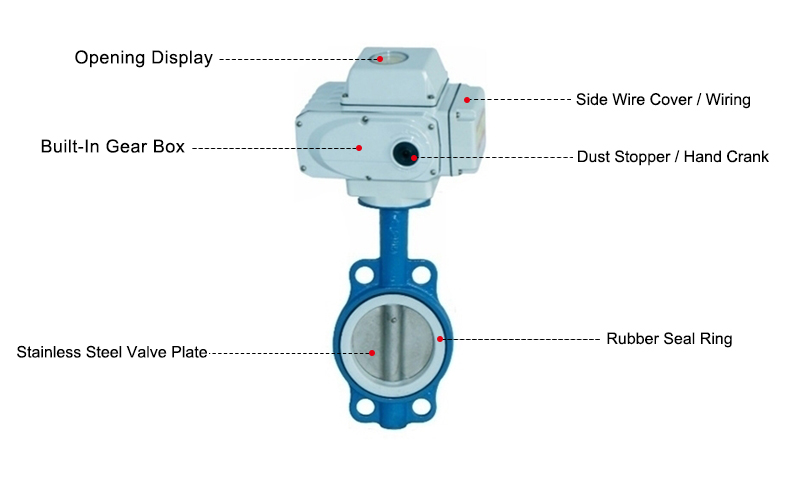

    Electric Wafer Butterfly Valve Details

    Tips: How to maintain an electric actuated butterfly valve?

    • Each spring of the electric butterfly valve is only suitable for a certain range of outlet pressure, and the spring beyond this range should be replaced.
    • When the working temperature of the medium is high, the pilot piston type electric butterfly valve or the pilot metal bellows type electric butterfly valve is generally used.
    • When the medium is gas or water, the quick-acting diaphragm type electric butterfly valve or the pilot diaphragm type electric butterfly valve is generally selected.
    • When the medium is steam, pilot piston type or pilot metal bellows type electric butterfly valve should be used.
    • In order to facilitate the actual operation, adjustment and maintenance, the electric butterfly valve should generally be installed on the horizontal pipe.
