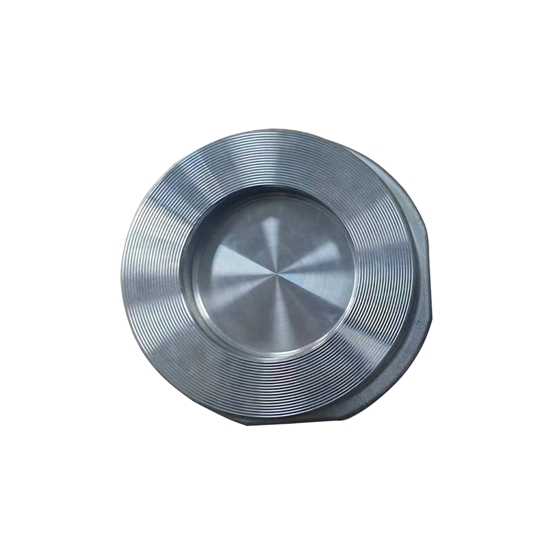

1" Stainless Steel Wafer Check Valve

5 out of 5 based on 2 reviews | Write a review

$60.38

Get a quality wafer check valve at low price. This 1" stainless steel wafer check valve comes with DN25, PN 4MPa, single disc construction, reliable, durable and low maintenance. Wafer non return valve is widely used in various pipeline projects such as water plants, papermaking, heating, refrigeration, petroleum, construction, wind power, construction, and medicine.

Material *

SKU: ATO-SSWCV-01

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Documents

Low price 1 inch wafer check valve for sale online. It is a high quality stainless steel wafer check valve with a 25 mm nominal diameter and 4 MPa nominal pressure, usually used in space limited applications such as HVAC systems, water treatment plants and industrial processes.

Specifications

Model: ATO-H71W
Check Valve Type: Wafer
Nominal Diameter: 1 inch (25mm)
Nominal Pressure: 4 MPa
Product Material: 304/316 Stainless Steel
Connection Form: Clip
Temperature Range: -20°C~180°C
Weight: 0.43kg
Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

Details

Wafer check valve dimensions

Main Part Materials
NO.	Part Name	Materials	QTY
1	BODY	CF8/CF8M	1
2	DISC	CF8/CF8M	1
3	SPRING	S201/S304	1
4	CAP	CF8/CF8M	1
Dimension (Unit: mm)
Φd	D	D1	L±1.5
21	67	68	27

Applications

Wafer check valve is a type of check valve that is used to regulate and control the flow of fluids through pipelines while preventing backflow. High quality wafer check valve is typically used in applications where space is limited, such as in HVAC systems, water treatment plants, and industrial processes.

Wafer check valve application

Tips: What materials are wafer check valves made from?

Wafer check valves can be made from a variety of materials, including stainless steel, cast iron, ductile iron, and PVC. The choice of material will depend on the specific application, including the medium being transported and the temperature and pressure requirements.

ATO Stainless Steel Swing Check Valve Datasheet

ATO CPVC Swing Check Valve Datasheet

ATO Stainless Steel Wafer Check Valve Datasheet

ATO Foot Check Valve Datasheet

Existing reviews of 1" Stainless Steel Wafer Check Valve

My usage experience

I recently purchased this 1 "stainless steel soft seal check valve and would like to share some of my usage experience. After several weeks of use, this check valve has not encountered any problems and the sealing effect is still intact. Its performance in high-pressure environments is also very stable, and its durability and performance have met my expectations.

From: Windy | Date: 26/08/2024

Was this review helpful? Yes No (0/0)

Excellent wafer check valve

Wafer check valves are an important accessory in my water treatment plant. It prevents backflow and maintains flow in one direction, which keeps equipment safe. So, they are essential for me.

From: Morio | Date: 28/03/2023

Was this review helpful? Yes No (0/0)
