    1" Pneumatic Ball Valve, 2 Way/ 3 Way
    Picture of 1" Pneumatic Ball Valve, 2 Way/ 3 Way
    Picture of 1" Pneumatic Ball Valve, 2 Way/ 3 Way
    Picture of 1" Pneumatic Ball Valve, 2 Way/ 3 Way
    Picture of 1" Pneumatic Ball Valve, 2 Way/ 3 Way
    Picture of 1" Pneumatic Ball Valve, 2 Way/ 3 Way

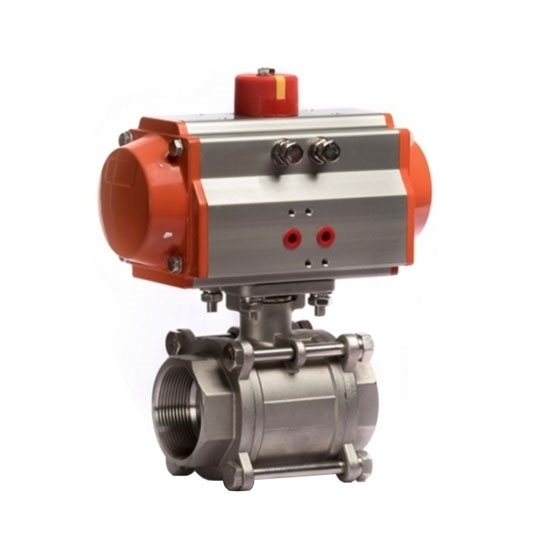

    1" Pneumatic Ball Valve, 2 Way/ 3 Way

    5 out of 5 based on 2 reviews | Write a review
    $151.49
    Factory price 1 inch pneumatic ball valve for sale, 2 way or 3 way, equipped with high performance double acting pneumatic actuator, DN25 (25mm) port size, threaded type, flanged type and PVC true union type available. This air actuated ball valve is perfect for water, gas control and other fluid service.
    *
    *
    *
    SKU: ATO-PBV-25A
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Industrial 1 inch pneumatic ball valve with an air actuator requires compressed air to work, which is widely used in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

    Specification

    Ball Valve Model ATO-Q611F-16P-DN25 ATO-Q641F-16P-DN25 ATO-Q691X-10U-DN25 ATO-Q614F-16P-DN25 ATO-Q615F-16P-DN25 ATO-Q644F-16P-DN25 ATO-Q645F-16P-DN25
    Ball Valve Type (Optional) 2 Way Threaded Type 2 Way Flanged Type 2 Way PVC True Union Type 3 Way Threaded Type, L Port 3 Way Threaded Type, T Port 3 Way Flanged Type, L Port 3 Way Flanged Type, T Port
    Port Size 1 inch (DN25, 25mm)
    Environment Temperature -10°C to 60°C
    Medium Temperature -10°C to 180°C
    Medium Pressure 1.6MPa
    Seat Material Plastic (PTFE)
    Body Material Stainless Steel (SS 304) Stainless Steel (SS 304) PVC Stainless Steel (SS 304) Stainless Steel (SS 304) Stainless Steel (SS 304) Stainless Steel (SS 304)
    Pneumatic Actuator Model ATO-AT050D ATO-AT063D ATO-AT050D ATO-AT063D ATO-AT063D ATO-AT063D ATO-AT063D
    Bore Size 50mm 63mm 50mm 63mm 63mm 63mm 63mm
    Air Supply Port 1/8 inch 1/4 inch 1/8 inch 1/4 inch 1/4 inch 1/4 inch 1/4 inch
    Power Source Compressed Air
    Actuator Type Double Acting
    Air Pressure 0.3 ~ 0.8MPa
    Actuator Body Material Aluminum Alloy


    Details

    Pneumatic Ball Valve Details

    Body Dimension (Unit: mm)

    2 way/ 3 way, stainless steel, threaded type

    2 way 3 way stainless steel thread type pneumatic ball valve dimension

    φd L1 A H1 L2 H2
    25 90 146 146 86 135

    2 way/ 3 way stainless steel, flanged type

    2 way / 3 way stainless steel flanged type pneumatic ball valve dimension

    DN L1 T f D B C H1 H2 A1 A2 L2 N-M
    25 150 16 2 115 65 85 175 175 167 167 180 4-φ14

    2 way, PVC true union type

    2 way PVC pneumatic ball valve dimension

    DN D D1 d L1 A H
    25 33 44 23 20 146 187


    Pneumatic Actuator Dimension (Unit: mm)

    Pneumatic actuator dimension

    ATO-AT050D

    Q A B C D E F G H I
    Φ36/Φ50mm 146mm 70mm 30mm 40mm 96mm 69mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/8" 20mm 40.5mm 4mm 4mm 12mm 24mm 16mm 32mm

    ATO-AT063D

    Q A B C D E F G H I
    Φ36/Φ50mm 167mm 82mm 35mm 47mm 113mm 85mm 30mm 80mm PF
    J K O P S T U V W X
    M6 1/4" 20mm 40.5mm 4mm 4mm 12mm 24mm 16mm 32mm


    Three Way Ball Valve Flow Pattern

    T Type:

    3 way pneumatic ball valve flow patterns t port

    L Type:

    3 way pneumatic ball valve flow patterns l port

    Tips: How to install a threaded 3 way pneumatic ball valve?

    • Remove the protective covers on both sides of the flange end of the pneumatic three-way female ball valve, and rinse and clean with the valve fully open.
    • The whole machine should be tested according to the regulations before installation, and it can be installed online only after passing the test.
    • Before preparing to connect with the pipeline, it is necessary to rinse and remove the remaining impurities in the clean pipeline.
    • During the installation of the pneumatic three-way internal thread ball valve, please do not use the actuator part of the valve as the lifting point to avoid damage to the actuator and accessories.
    • The 3 way threaded pneumatic ball valve should be installed in the horizontal or vertical direction of the pipeline.
    • The pipeline near the installation point of the pneumatic three-way ball valve shall not be sagging or subjected to external force. Pipe supports or supports can be used to eliminate the deviation of the pipeline.
    • After the pneumatic ball valve is connected to the pipeline, please cross-lock the flange connecting bolts with the specified torque.
