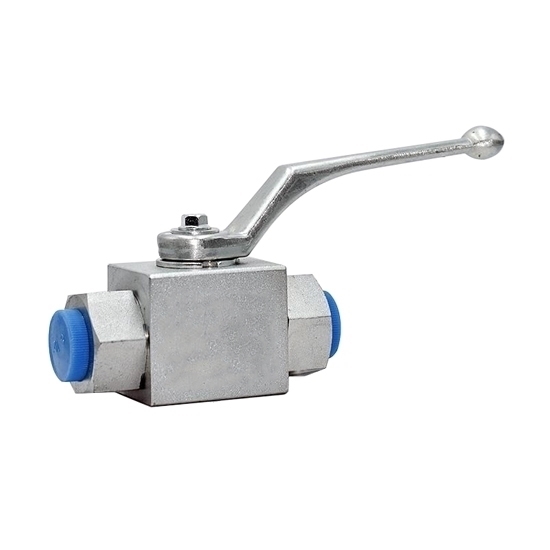

1" Hydraulic High Pressure Ball Valve, 2 Way

G1 inch hydraulic high-pressure ball valve is a type of valve designed for use in hydraulic systems where high-pressure fluids are involved. These 2 way ball valves are commonly used to control the flow of hydraulic fluids, such as oil, in various industrial and heavy-duty applications. They are specifically designed to handle high-pressure conditions and provide reliable fluid control.

Specification

• Model: ATO-KHB-G1
• Type: 2 Way High Pressure Ball Valve
• Drive Mode: Hydraulic
• Port Size: G1 inch (DN25)
• Nominal Pressure: 315bar
• Applicable Temperature: -29℃~120℃
• Applicable Media: Water, Oil
• Body Material: Carbon Steel

Dimension (Unit: mm)

Application

Tips: How does a hydraulic ball valve work?

A hydraulic ball valve is a type of control valve used to regulate the flow of fluids in hydraulic systems. It consists of a hollow, perforated ball within a valve body. When the valve is in the closed position, the ball blocks the flow of fluid. To open the valve, hydraulic pressure is applied to one side of the ball, forcing it to rotate within the body. As the ball turns, the fluid can flow through a hole in the ball and out the other side. When the valve is fully open, the ball's bore aligns with the valve body's inlet and outlet, allowing unrestricted fluid flow.

By varying the hydraulic pressure applied to the ball, the valve's position can be controlled precisely, enabling the regulation of fluid flow. This design is known for its reliability and quick response time, making it ideal for many hydraulic applications, including industrial processes, fluid power systems, and more.
