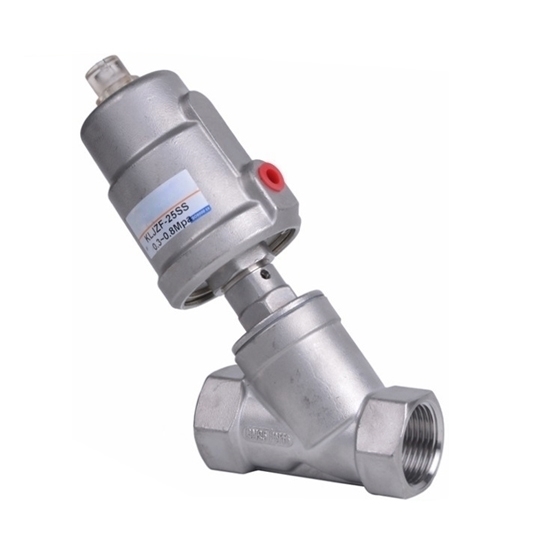

1" Pneumatic Angle Seat Valve, 2 Way, 2 Position

Write a review

$134.99

Low price pneumatic angle seat valve adopts single acting pneumatic actuator with spring safety protection to operate, 1 inch (DN25) thread port, 2 way 2 position, stainless steel body material, nominal pressure 1.6MPa, air pressure 0.4~0.8MPa. This angle seat piston valve can control air, water, oil, gas and steam.

Actuator Material *
Valve Status *
Pipe Thread Type *
Pipe Thread Type *

SKU: ATO-ANGLE-25

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

1 inch thread port size pneumatic angle seat valve for sale at factory price. It is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

Model: ATO-KLJZF-DN25
Pipe Thread Type: 1 inch (DN25), ZG, G or NPT
Working Medium: Air, Water, Oil, Gas, Steam
Pneumatic Fitting Type: ZG 1/4"
Medium Temperature: -10℃~+180℃
Ambient Temperature: -10℃~+60℃
Nominal Pressure: 1.6MPa
Air Pressure: 0.4~0.8MPa
Valve Body Material: Stainless Steel (SS304, SS316)
Sealing Material: PTFE
Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Dimensions of angle seat valve with stainless steel actuator

Actuator	D	R	P	G	H	L	L1	T
50	62	33.5	ZG1/8"	ZG1"	1148	156	90	16

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Dimensions of angle seat valve with plastic actuator

Actuator	D	A	B	C	φE	F	G	H
63	ZG1"	105	215	19	80	52	120	175

Tips: What is a pneumatic angle seat valve?

The angle seat valve is a pilot angle seat valve operated by a single-acting pneumatic actuator with spring safety protection. The angle seat valve is widely used in short-term frequent starts, maintaining the flow rate can save space, and has the characteristics of sensitive response and accurate action. It is equipped with solenoid valve, and the gas and liquid flow can be accurately controlled by pneumatic control. Accurate temperature control, dripping liquid and other requirements can be achieved.
