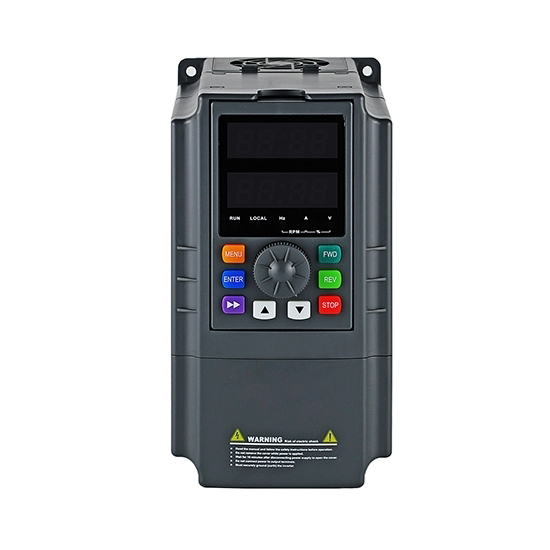

    1 hp VFD, 1-Phase 220V to 3-Phase 380V VFD

    1 hp VFD, 1-Phase 220V to 3-Phase 380V VFD

    4.9 out of 5 based on 11 reviews | Write a review
    $309.15
    1 hp VFD for sale at cheap price, with 1-phase 220v input to 3-phase 380v output. 50Hz/ 60Hz input frequency, 2.1 amps rated current, RS485 enabled.
    *
    *
    *
    SKU: GK3000-CS0007
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Best 1 hp (0.75 kW) variable frequency drive, single phase 220v to three phase 380v VFD for AC motor speed control, 400v/ 415v output for choice.

    Specification:

    Basics Model GK3000-CS0007
    Capacity 1 hp (0.75 kW)
    Shipping weight 3 kg
    Dimension 236*130*176 mm
    Installation size 222*116 mm
    I/O Feature Rated current 2.1 A
    Input voltage 1 phase 220~240V AC
    Input frequency 50Hz/ 60Hz
    Output voltage (Optional) 3 phase AC 380V/ 400V/ 415V/ 440V/ 460V (Note: 440V, 460V output voltage only for the 1-phase 240V input VFD)
    Output frequency 0Hz~1000Hz
    Over load capacity 150% of rated current for 1 minute, 180% of rated current for 3 seconds
    Control Feature Control mode V/F control;
    Sensorless vector control;
    Communication RS485
    Speed regulation 1:100
    Start torque 150% of rating torque at 1 Hz
    Speed control accuracy ≤±0.5% of rating synchronous speed
    Frequency precision Digital setting: max frequency x± 0.01%;
    Analog setting: max frequency x± 0.2%
    Frequency resolution Analog setting: 0.1% of max frequency;
    Digital setting: 0.01Hz
    Torque boost Automatic torque boost, manual torque boost 0.1%~30.0%
    Interior PID controller Be convenient to make closed-loop system
    Automatic energy save running Optimize V/F curve automatically based on the load to realize power save running
    Automatic voltage regulation (AVR) Can keep constant output voltage when power source voltage varies.
    Automatic current limiting Limit running current automatically to avoid frequent over-current which will cause trip
    Environment Enclosure rating IP 20
    Temperature –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
    Humidity 5%-95%, without condensation
    Altitude ≤1000m; VFD will be derated if above 1000m
    Impingement and oscillation Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
    Store environment –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

    Note: ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

    Tips: Why you need a 1-phase 220V to 3-phase 380V VFD?

    Due to national policies and regional restrictions, many areas will now withdraw 3-phase 380V industrial power. No 3-phase power in the region to apply for 3-phase power cumbersome procedures and a variety of labor costs and various hidden costs, resulting in some areas can not use industrial 380V power. and general industrial equipment, such as AC motors are mostly 3-phase 380V, in the absence of 3-phase electricity can not run. We can only find ways to convert 1-phase 220V to 3-phase 380V. However, many single phase 220V to three phase 380V equipment on the market are ridiculously expensive, so many users in need are discouraged. And the original machine can only be temporarily placed, or put into other places with industrial electricity to use.

    ATO offers a series of 1-phase 220V input to 3-phase 380V output variable frequency drive from 1hp to 20 hp, which can drive 3-phase asynchronous motor soft start operation, for infinitely adjustable speed. The input power only needs single phase 220V, output three phase 380V, and the price is acceptable to most users. Our VFDs are about 1/10 of the price of the booster on the market, compact size, powerful, 0-400Hz can be adjusted at will, completely solve the embarrassing situation of industrial equipment without 3-phase power.

    This video is about how to use buttons to run single-phase VFD of three-phase motors.

    The video shows the parameter setting methods for the V/F control mode and vector control mode of single-phase to three-phase VFD.

    This video provides insights into the wiring process for converting single-phase to three-phase VFD, specifically from 220V to 380V.

    Existing reviews of 1 hp VFD, 1-Phase 220V to 3-Phase 380V VFD
    I have a question about writing to 0x6000
    I have a question about writing to 0x6000. I’m getting a failure, illegal data value when I try to write a 1. My question, are writes to 0x6000, the command registers limited if pc.03 (command source) is not set to 2 (terminal). I’m just testing at this point and don’t want to interfere otherwise with the VFD so pc.03 is at 0.
    From: Ives | Date: 19/09/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Please read the RS485 communication protocol description carefully. Please read the RS485 communication protocol section of the manual carefully again (Chapter 9), see on: https://www.ato.com/Content/doc/gk3000-variable-frequency-drive-user-manual.pdf
    In the communication description section, address 0x6000 is the address of the VFD control parameter group, which can only be read but Not written. Then of course there will be errors when you write.
    Which is correct for VFD answer?
    One of the questions asked about this VFD was whether it maintained the motor within its torque capability at a reduced frequency. The answer was no.
    However, the manual indicates that the VFD operates in linear V/F mode only, which would be constant torque below the motor's base speed and constant hp above.
    My question is, which is correct? Can the VFD maintain the motor at near 100% rated torque down to at least 80% of its base speed? Thank you.
    From: ritchie | Date: 29/08/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    When the frequency and speed of a single-phase motor are reduced, the output torque will also drop, and the torque cannot be maintained.
    The V/F curve operation mode described in our manual is based on the research of three-phase motors, single-phase motors have not been tested.
    Can you give advice to solve VFD problem?
    Hello! I purchased a gk3000 that went through wiring, and programming, and the milling machine ran.
    However, on the endmill cutter, I didn’t seem to be receiving the correct power as well as at a certain point it shut all power to the house down without flipping the breakers within the panel.

    I’m going to assume on the machine side some of the programming may be incorrect as I followed the YouTube videos and plugged my motor information as best I could. In any case, I have it switched off at the breaker now and am advantageous to restart because I can not lose power to the house.

    I spoke to a mechanical electrician as this transgressed and he was baffled as well.
    Any direction, or advice?
    Would be greatly appreciated.
    From: abner | Date: 25/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Please provide us with the order number to further confirm what product you purchased.
    We hope to provide you with better service.

    2. Our VFD cannot be used as a power source, it needs to be directly connected to the motor.
    Please provide us with your motor nameplate picture for further confirmation.
    Is there any video on how to change the VFD parameters?
    I bought a VFD from you.
    Is there any video on how to change the parameters?
    From: avery | Date: 17/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. Please provide us with the order number to further confirm what product you purchased.
    We hope to provide you with better service.
    2. Please refer to the link settings: https://www.youtube.com/@ATOcom/playlists
    We should control VFD by modbus communication only?
    Thank you for your support.
    So you are saying we should control VFD by MODBUS communication only?
    From: Betty | Date: 07/06/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, VFD can only be controlled via MODBUS communication.
    I can't find the perimeters on the manual
    I have a VFD model and could use some help on setting the perimeters on the VFD to make it run controlled from a pressure switch to an air compressor. I have the pressure switch connected to COM and FWD terminals, just can't find the perimeters on the manual to set it to run being controlled by the pressure switch.
    From: Keran | Date: 21/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Is your compressor pressure switch similar to a button switch with a normally open contact (NO)? If yes, you can use this pressure switch, connect to FWD-COM terminal. Please refer to the settings as follows:
    P0.03=1 (run command from terminal)
    P4.08=0 (2-wire control mode 1)
    P4.00=13 (Define terminal X1 as stop signal)
    When your pressure switch is activated, the normally open contact is closed, and the FWD-COM is connected, the VFD will start running. When you press Emergency stop, X1 and COM will be connected, and VFD will stop.
    Can I increase torque though parameter settings?
    A 3ph 1hp GP ind. motor is used to install the GK3000 to a small wood lathe. The torque feels insufficient. Is it possible to enhance torque using parameter settings? My motor is a 2-pole (per the specs), but I changed the pole parameter to a 4-pole setting, and the torque seemed to increase. Is this a bad idea?
    From: Tom | Date: 09/09/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    By adjusting parameter P0.09 to 4% or 6%, you can increase the torque. You might as well return the motor to 2-pole operation at the same time.
    Please let me know what information you can provide about this series?
    Hello, I am interested in more information about the GK3300 series of VFD drives, non-enclosed. Could you provide a manual for this series? I found a manual for the GK3000 series and imagine many things are similar. However, the main thing I wonder is how they are set up since it looks like there is no control readout, buttons or other manual inputs. Is this done with a configuration software maybe? Please let me know what info you can provide regarding this series!
    From: Pasadas | Date: 21/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    If you purchase the VFD non-enclosed, it will be equipped with a keyboard to realize input and display the reading function.
    Can ATO help me find a suitable VFD?
    We are looking for a single phase 5hp frequency drive 120 volt input to 3 phase 230 volt output 230 volt 60 Hz for a dive compressor application and we are wondering if this is where you can help us with?
    The unit needs to be able to start through an external source in this case the dive compressor and then we are looking for and programmable output for a 120 volt drain valve 10 watts. ideally when the unit starts up, it will energize for about 7 seconds, so the drain solenoid will open and vent while the motor is getting to full speed. Then de-energize for 10 minutes for about 7 seconds and just repeat while the motor is running. If not, can we use the output relay to activate a cycling timer relay?
    From: Bertinazzi | Date: 09/09/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    SKU: GK3000-SP1S1-004
    Our VFD supports single-phase 120V input, and the output voltage is three-phase 220V.
    However, this voltage should not affect the 230V motor much, so you can use it normally.
    If you can provide your submersible compressor power, voltage, current and other parameters for our reference, it would be better. The rated current capacity of VFD should be larger than your motor rated current.
    For the cyclic control requirements you mention below, you can only program them yourself or use the cyclic timer relay.
    The scope of use of 1-phase 1hp VFD
    Will your 1hp, 1-phase, 220V drive work for 100-200W motor?
    From: Cody | Date: 28/07/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, of course, it works.
    1hp VFD protection method
    Protection between 1hp VFD and motor: Could you please tell me quickly why you don't recommend any EMC filters, shielded wires and braking module/transistor?
    From: Cliffy | Date: 22/04/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Don't recommend anything between 1hp VFD and motor, because motor will be directly controller "on/off/speed, etc" via the VFD.
    Load more reviews...
