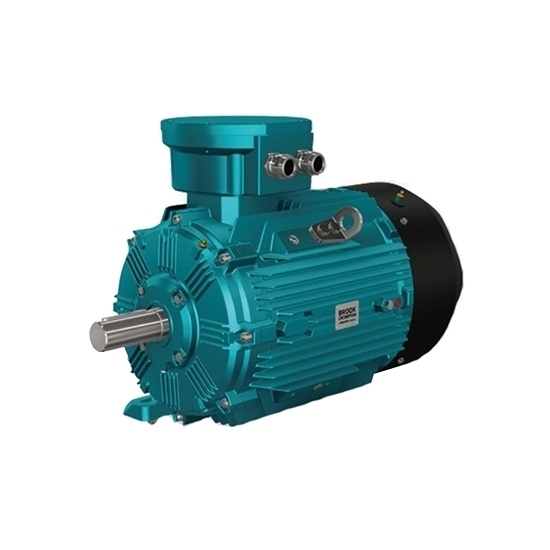

1.5hp (1kW) Explosion Proof Motor, 380V, 2P/ 3P/ 4P

Write a review

$808.69

Good price explosion proof induction motor with 1000 watt rated power, rated voltage 380V (380V-660V can be customized), B3/ B5/ B35 three mounting types are optional. Flameproof motor is widely used in sectors such as textiles, metallurgy, city gas, transportation, grain and oil processing, papermaking, and medicine.

Number of Poles *
Installing Form *

SKU: ATO-WEX3-80M2

Qty:

30-day Returns

Free Shipping

Delivery date: 10-12 days

Overview
Related Video

1.5hp flameproof induction motor for sales. Three phase explosion proof motor with 2-pole/ 4-pole/ 6-pole can be chosen, synchronous speed 3000r/min/ 1500r/min/ 1000r/min for selection.

Specification

Model	ATO-WEX3-80M2
Numbers of poles	2P/ 4P/ 6P
Synchronous speed	3000r/min/ 1500r/min/ 1000r/min
Mounting types	B3/ B5/ B35
Rated power	1.5hp (1kW)
Rated voltage	380V (380V-660V can be customized)
Frequency	50Hz
Duty	S1
Ambient temperature	-20℃~40℃
Altitude	≤1000m
Humidity	≤90%
Terminal box position	Top
Type of cable entry	Cable grand
Enclosure	IP55
Inverter operation	Inverter use ready up to 500V acc
Insulation	Class F
Cooling type	IC411
Shaft key	Type A
Lubrication	Sealed
Connectiom	"Y" connection
Fan material	Engineered plastic
Rotation direction	Clockwise rotation at drive end
Winding temperature measurement	Thermistors (PTC)
Anti-corrosion grade	C3
Certificates	IEC, EX, ATEX
Explosion-proof mark	Ex d I Mb, Ex d ⅡB T4 Gb, Ex d ⅡC T4 Gb
Warranty	12 months

Dimensions (mm)

Mounting type	Frame size	Mounting dimensions (mm)													Outline dimensions (mm)
		A	A/2	B	C	H	n	K	M	N	P	R	S	T	AA		EV		LA	AB		BB		HA		AC	HD		L
		A	A/2	B	C	H	n	K	M	N	P	R	S	T	AA		EV		LA	AB		BB		HA		AC	Ex db eb	Ex db	L
B3	80M	125	62.5	100	50	80	4	10	-	-	-	-	-	-	32	27.5	15	15	-	157	160	160	130	10	12	162	255	260	360
B35		125	62.5	100	50	80	4	10	165	130	200	0	12	3.5	32	27.5	15	15	12	157	160	160	130	10	12	162	255	260	360
B5		-	-	-	-	80	-	-	165	130	200	0	12	3.5	-	-	-	-	12	-	-	-	-	-	-	162	275	280	360

Frame size	Shaft (mm)
Frame size	D	E	F	GA	DB
80M	19	40	6	21.5	M6*20

Details

Tips: The differences between explosion-proof motors and ordinary motors.

1. Different places of application: explosion-proof motors are generally used in flammable and explosive situations.
2. The sealing effect of the junction box is different: the sealing of the junction box of the explosion-proof motor is better than that of the ordinary motor.
3. The protection levels are not exactly the same: the minimum protection level of explosion-proof motors is IP55, while ordinary motors have IP23, IP44, IP54, IP55, and IP56.
4. The operational safety is not exactly the same: the explosion-proof motor does not produce sparks when it is running.
5. The main purposes are not exactly the same: explosion-proof motors are mainly used to drive pumps, fans, compressors and other transmission machinery in flammable and explosive enterprises such as coal mines, petroleum and natural gas, petrochemical and chemical industries.
