Hydraulic shuttle valves are commonly used in various hydraulic systems, such as in mobile equipment, industrial machinery, and aircraft hydraulic systems, where the ability to switch between hydraulic circuits or isolate them is necessary for proper operation. They provide a simple and reliable means of controlling hydraulic fluid flow in these applications.

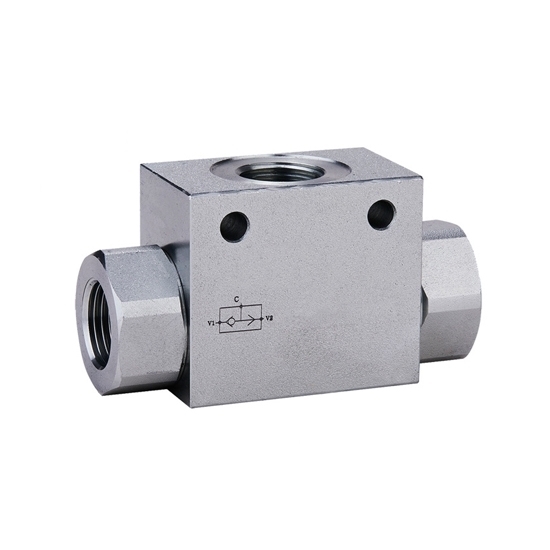

Specification
- Model: ATO-VUSF-G1/4
- Shuttle Valve Type: 3 Way
- Body Material (Optional): Carbon Steel
- Connection Thread Port: G1/4 inch (DN6)
- Max. Pressure: 350bar
- Max. Flow: 20L/min
- Operating Temperature Range: +40℃~+70℃
- Ambient Temperature: -20℃~+60℃
Dimension (Unit: mm)
Model |
DN |
L |
L1 |
C |
D |
E |
F |
G |
I |
J |
SW |
ATO-VUSF-G1/4 |
6 |
48 |
36 |
25 |
35 |
22.5 |
7.5 |
G1/4" |
25 |
5.5 |
22 |
Tips: Can hydraulic shuttle valves be used in conjunction with other hydraulic components?
Yes, hydraulic shuttle valves are commonly used in conjunction with various other hydraulic components to create complex hydraulic systems for a wide range of applications. These components include pumps, cylinders, directional control valves, pressure control valves, filters, accumulators, and more.
For example, in a hydraulic system controlling the movement of a hydraulic cylinder, a hydraulic shuttle valve may be used in conjunction with directional control valves to control the direction of fluid flow to and from the cylinder. Pressure control valves can regulate the pressure within the system, while filters help maintain fluid cleanliness.
The versatility of hydraulic shuttle valves allows them to be integrated into diverse hydraulic systems, providing flexibility in fluid routing and control. Proper selection and integration of these components are crucial to ensure optimal performance, efficiency, and safety of the hydraulic system. Regular maintenance and inspection of all components, including the shuttle valve, are essential to prevent malfunctions and ensure reliable operation.
