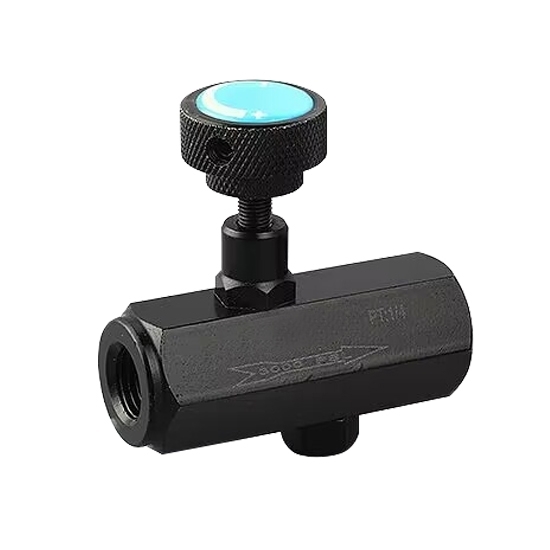

    1/4" Hydraulic Flow Control Valve

    $44.36
    1/4" hydraulic flow control valve for sale online. Low-price throttle valve with a thread connection, can regulate the flow of fluid in a hydraulic system, widely used in hydraulic systems to control the speed and flow of fluid.
    SKU: ATO-FCV-1/4
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    1/4" hydraulic flow control valve can limit or adjust the speed and flow of fluid through the system. It is a one-way flow control valve, suitable for industrial machinery, construction equipment, agricultural machinery, aerospace, automotive engineering, etc.

    Specifications

    Model ATO-KC-02
    Product Type Throttle Valve
    Drive Mode Hydraulic
    Application Hydraulic Press
    Applicable Medium Hydraulic Oil
    Connection Method Thread
    Proper Temperature 80°C
    Maximum Pressure 250kg
    Flow Direction One Way
    Highest Form Liquid
    Stressful Environment High Pressure
    Product Material Cast Iron
    Channel Position Direct Type


    Notes

    • Please keep the oil clean.
    • The (one-way) throttle valve has the advantages of simple structure, convenient adjustment, and low price, but because there is no pressure compensation, the flow stability is poor, and it is suitable for occasions where the load changes little or the speed control accuracy is not high.
    • Throttle valve should not be opened too small during use, otherwise, it is easy to block and cause the actuator to crawl.

    Dimension (Unit: mm)

     Hydraulic flow control valve dimension

    Model PT A B C L Flow  Weight
    ATO-KC-02 1/4" 38 24 7 62 12 0.23kg


    Applications

     Hydraulic flow control valve applications

    Tips: What is a hydraulic flow control valve?

    A hydraulic flow control valve is a type of flow control valve specifically designed for use in hydraulic systems. It is used to regulate and control the flow rate of hydraulic fluid in a hydraulic circuit.

    Hydraulic systems utilize pressurized hydraulic fluid to transmit power and control the movement of various mechanical components, such as cylinders and motors. A hydraulic flow control valve allows for precise adjustment of the flow rate, which is essential in controlling the speed and direction of hydraulic actuators.
