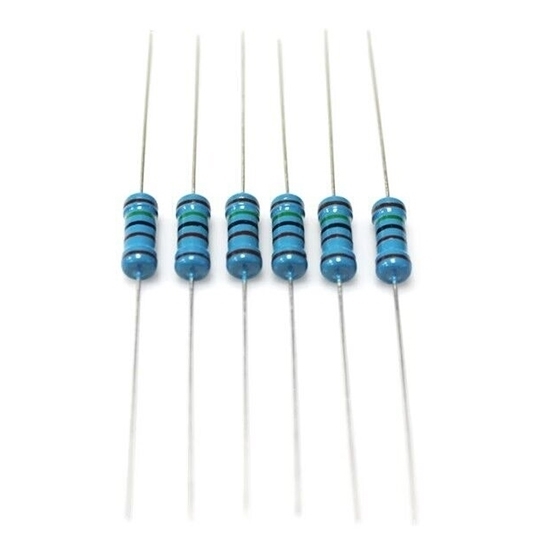

1/2W Metal Film Resistor, 1 Ohm to 1M Ohm

The compact metal film resistor kit has excellent power handling capabilities and is available in resistor values from 1 Ohm to 1M Ohm. ATO metal film resistors are precision engineered using top quality metal film technology to ensure excellent performance and reliability in a wide range of electronic applications.

Specification

• Model: ATO-MFR-1-2W
• Power Rating: 1/2W
• Max. Operating Voltage: 350V
• Max. Overload Voltage: 700V
• Maximum Intermittent Overload: 700V
• Withstand Voltage: 500V
• Tolerance: ±1%
• Temperature Coefficient (15- 25ppm): 51.1Ω-1MΩ
• Temperature Coefficient (50ppm): 10Ω-2.2MΩ
• Temperature Coefficient (100ppm): 10Ω-1MΩ

Features

• Metal film resistors have a wide operating frequency range and low noise levels, making them suitable for use in high frequency circuits.
• Metal film resistors offer stable voltage and low temperature coefficient.
• Metal film resistors feature good heat resistance and stable performance.
• Metal film resistors come in a wide range of resistance values and have rated power.
• 1/2-watt metal film resistors are available with a tolerance of 1%.

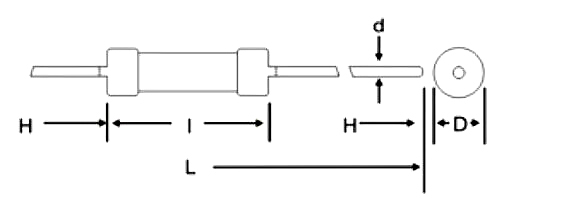

Dimension (unit: mm)

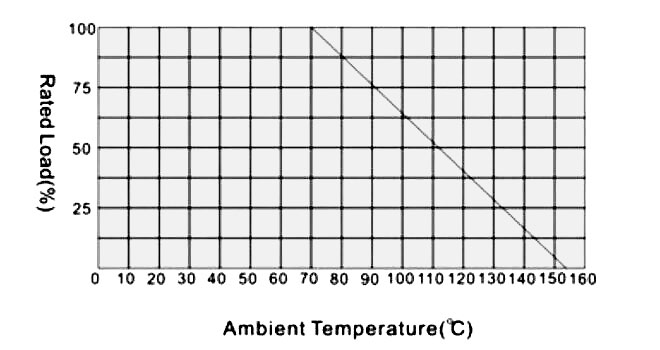

Power Derating Curve

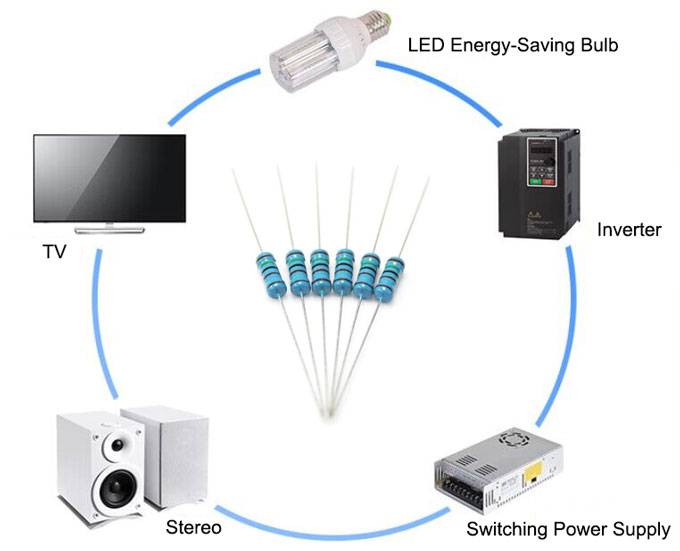

Applications

Metal film resistors are widely used in various electronic devices and applications, including telecommunications, consumer electronics, automotive electronics, industrial equipment, and more. They are commonly found in amplifier circuits, power supplies, instrumentation, and other electronic systems where precise and stable resistance values are required.

Tips: What is a metal film resistor?

A metal film resistor is a type of electrical resistor commonly used in electronic circuits. It is constructed by depositing a thin film of metal, typically nickel-chromium or tin oxide, onto a ceramic substrate. The metal film provides the resistive element of the resistor.

The metal film resistor offers several advantages over other types of resistors. It has excellent stability, providing consistent resistance values over time and temperature changes. The thin film also results in low noise and low inductance, making it suitable for applications where precision and accuracy are important.
