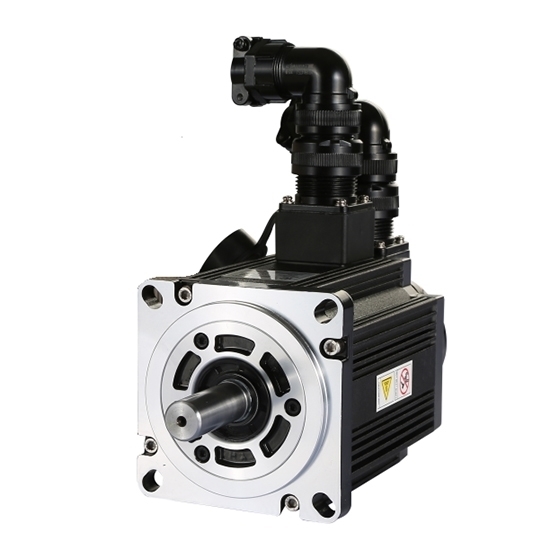

1.2 kW AC Servo Motor, 4 Nm, 3000 rpm

Brushless AC servo motor with power rating of 1.2 kW, 4Nm hold torque, 5 amps, rated speed of 3000 rpm, high precise speed control.

Basic Specifications

• Model: ATO110SY-M04030

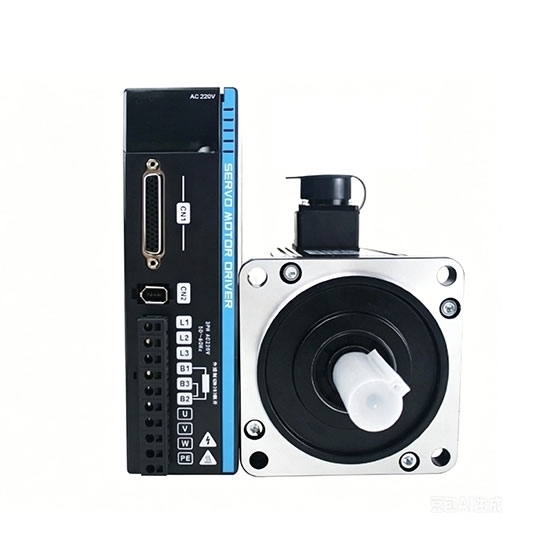

• Matched Drive Model: ATO-SG-AS302600
• Rated Power: 1200 W
• Rated Voltage: Single phase or three phase 220V AC
• Rated Current: 5 A
• Rated Speed: 3000 rpm
• Max Speed: 3600 rpm
• Rated Torque: 4 Nm
• Peak Torque: 12 Nm
• Square Flange Size: 110 mm
• Weight: 6.2 kg

Technical Parameters

• Number of Poles: 4 pairs
• Rotor Inertia: 0.65x10^-3 Kg.m²
• Brake Voltage: 24V DC (Non polar requirement)
• Incremental Encoder Line: 2500/5000 PPR (Optional)
• Absolute Encoder: 17 bit, 23 bit (Optional)
• Insulation Class: Class B
• Insulation and Voltage Resistance: 1500V AC, 1 Min
• Protection Grade: IP65

Features

1. Accuracy: ATO AC servo motors realize closed-loop control of position, speed and torque, overcome the problem of stepper motor out-of-step.
2. Speed: Good high-speed performance, rated speed can reach 1000-3000 rpm.
3. Adaptability: ATO heavy duty servo motors with strong anti-overload capability, able to withstand a load three times the rated torque, especially suitable for occasions with instant load fluctuations and requiring quick start.
4. Stable: Our AC brushless servo motors have smooth low-speed operation, no stepping phenomenon similar to stepper motor will occur when running at low speed, suitable for occasions occasions requiring fast response.
5. Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.
6. Safety: ATO AC servo motor protection grade is IP65, which meets the waterproof and dustproof requirements.

Installation Dimension (unit: mm)

Servo Motor without Brake Dimension

L (Incremental/Absolute encoder): 190mm

Servo Motor with Brake Dimension

L1 (with brake): 250 mm

Note:

*All above is the standard installation dimension, can be changed according to the customers' requirments.
*Not hit the shaft, or the encoder in the other end would be damaged.

Details

Winding and Encoder Connection

Tips: Servo motor vs. stepper motor

The control methods of stepper motors and servo motors are different. The stepper motor controls the rotation angle by controlling the number of pulses. One pulse corresponds to one step angle. However, because there is no feedback signal, the motor does not know where it is, and the position accuracy is not high enough. The servo motor also controls the rotation angle by controlling the number of pulses. Each time the servo motor rotates one angle, a corresponding number of pulses will be sent out, and the drive will also receive the feedback signal, which is compared with the pulse received by the servo motor. In this way, the system will know how many pulses are sent to the servo motor and how many pulses are withdrawn at the same time. In this way, the rotation of the motor can be controlled very accurately, thereby achieving precise positioning. The accuracy can reach 0.001mm.
