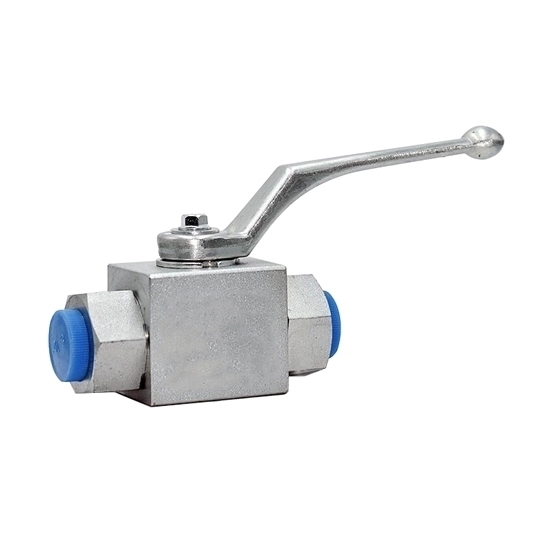

1/2" Hydraulic High Pressure Ball Valve, 2 Way

G1/2 inch hydraulic high pressure ball valve is a type of valve used in hydraulic systems to control the flow of fluids under high pressure. It consists of a spherical closure element (the ball) with a hole through it that can be rotated to either allow or block the flow of fluid. The 2 way ball valve is operated by a lever, handle, or actuator that turns the ball to open or close the valve.

Specification

• Model: ATO-KHB-G1/2
• Type: 2 Way High Pressure Ball Valve
• Drive Mode: Hydraulic
• Port Size: G1/2 inch (DN13)
• Nominal Pressure: 500bar
• Applicable Temperature: -29℃~120℃
• Applicable Media: Water, Oil
• Body Material: Carbon Steel

Dimension (Unit: mm)

Application

Tips: What is the purpose of the ball valve in a hydraulic system?

A ball valve in a hydraulic system serves as a crucial component designed to control the flow of hydraulic fluid within the system. Its primary purpose is to regulate the direction and rate of fluid flow, ensuring efficient and precise operation. The ball valve consists of a spherical closure element with a hole through its center, allowing fluid to pass through when aligned with the flow path and blocking it when rotated 90 degrees. This on/off or throttling capability enables operators to start, stop, or adjust fluid flow to various hydraulic components like cylinders, motors, or actuators.

Ball valves are favored in hydraulic systems due to their rapid response, minimal fluid resistance, and ability to maintain a leak-tight seal when closed. Their reliability and ease of operation make them suitable for diverse applications, from heavy machinery to industrial processes, where precise control and safety are essential.
