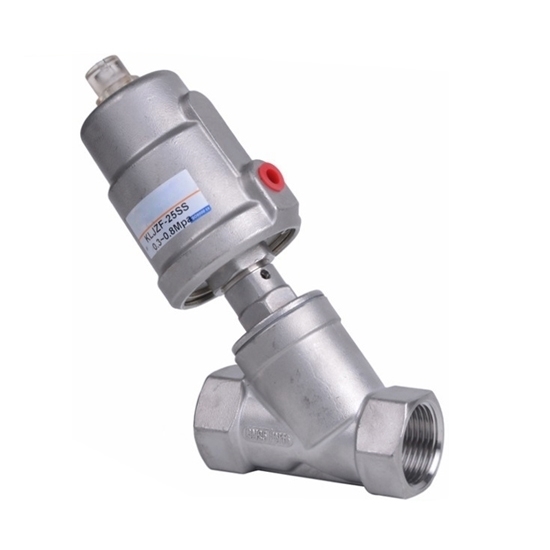

1/2" Pneumatic Angle Seat Valve, 2 Way, 2 Position

5 out of 5 based on 1 reviews | Write a review

$105.49

lightweight and low price pneumatic angle seat valve comes with single acting stainless steel or plastic actuator to control air, water, oil, gas and steam. 1/2 inch (DN15) thread port, air pressure air pressure 0.4~0.8MPa, stainless steel body and PTFE sealing, 2 way 2 position for air and liquid control.

Actuator Material *
Valve Status *
Pipe Thread Type *
Pipe Thread Type *

SKU: ATO-ANGLE-15

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

1/2 inch pneumatic angle seat valve is an inclined seat valve that works with stainless steel or plastic pneumatic actuator. Angle seat valve can be used for gas, liquid, steam and corrosive control. It has a radiator to protect the actuator, which prolongs the service life.

Specification

Model: ATO-KLJZF-DN15
Pipe Thread Type: 1/2 inch (DN15), ZG, G or NPT
Working Medium: Air, Water, Oil, Gas, Steam
Pneumatic Fitting Type: ZG 1/4"
Medium Temperature: -10℃~+180℃
Ambient Temperature: -10℃~+60℃
Nominal Pressure: 1.6MPa
Air Pressure: 0.4~0.8MPa
Valve Body Material: Stainless Steel (SS304, SS316)
Sealing Material: PTFE
Actuator Material (Optional): Stainless Steel or Plastic (Polyamide)

Angle Seat Valve with SS Actuator Dimension (Unit: mm)

Dimensions of angle seat valve with stainless steel actuator

Actuator	D	R	P	G	H	L	L1	T
50	62	33.5	ZG1/8"	ZG1/2"	126	137	68	13

Angle Seat Valve with Plastic Actuator Dimension (Unit: mm)

Dimensions of angle seat valve with plastic actuator

Actuator	D	A	B	C	φE	F	G	H
50	ZG1/2"	85	170	16	64	44	112	140

Tips: Advantages of pneumatic angle seat valve

With valve open or closed position display.
External pneumatic pilot for increased service life and maintenance-free.
There is a self-adjusting sealing gland between the overflow port and the slider, which can improve the sealing performance.
The valve body is an angle seat structure that can achieve large flow, compact structure and fast response.

Existing reviews of 1/2" Pneumatic Angle Seat Valve, 2 Way, 2 Position

The thread size

What is the thread size and type of the air ports on the actuator?

From: Wilmoth | Date: 05/12/2024

Was this review helpful? Yes No (0/0)

ATO Responded

The specification and type of the thread is ZG1/8, tapered pipe thread 1/8 inch.
