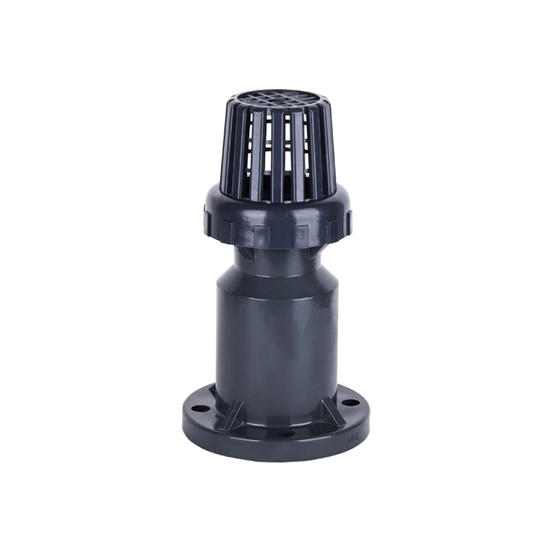

    1-1/4" Plastic Foot Valve, UPVC Non Return Valve

    $65.33
    Buy a 1-1/4" (DN32) UPVC foot valve for water pump. It is a kind of non-return valve, features plastic material and flanged connection, can prevent backflow and maintains fluid pressure, widely used in process plants, chemical plants, and wastewater treatment facilities.
    SKU: ATO-PFV-32
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low price 1-1/4" foot valve provides a 32mm port size, 16kg nominal pressure and flange connection, which can be used to control the flow of fluid in the pipeline. Equipped with a filter to prevent impurities from entering. UPVC foot valves are ideal for handling chemicals and corrosive fluids.

    Specifications

    • Model: ATO-H42F-10S
    • Port Size: 1-1/4 inch, DN32
    • Nominal Pressure: 16kg
    • Type: Foot Valve
    • Body Material: UPVC
    • Connection Form: Flange
    • Weight: 0.88kg
    • Suitable Medium: Water

    Features

    • The foot valve is mainly used in pumps and other mechanical equipment for slurry treatment. It is usually installed at the bottom of the pump's underwater suction pipe to limit the return of the liquid in the pump pipe to the water source.
    • There are many water inlets and ribs on the foot valve cover, equipped with a screen to prevent impurities from flowing in and reduce clogging.
      With good sealing performance, small pressure loss and strong hydraulic performance, the
    • UPVC foot valve is an ideal water pump supporting facility for petrochemical, chemical, textile, printing and dyeing, metallurgy, mining, drainage, irrigation industries, etc.

     Dimension (Unit: mm)

    UPVC foot valve dimension Nominal Diameter DN32
    D1 135
    D2 100
    L 210
    h 18
    N-Φ
    4-Φ17x20


    Applications

    Foot valve is a type of valve that is used in pumping systems to prevent the backflow of fluids. UPVC foot valve is used in various applications such as irrigation, water supply, and other fluid handling systems where backflow prevention is necessary.

    UPVC foot valve applications

    Tips: UPVC Foot Valve vs. Brass Foot Valve

    UPVC foot valves and brass foot valves are two different types of foot valves that have some key differences. Here are some of the main differences between them:

    • Material: UPVC foot valves are made from unplasticized polyvinyl chloride, a type of plastic material that is resistant to chemicals and corrosion. Brass foot valves, on the other hand, are made from brass, a metal that is also resistant to corrosion and durable.
    • Chemical resistance: UPVC foot valves are highly resistant to a wide range of chemicals, while brass foot valves are susceptible to corrosion in certain chemical environments.
    • Durability: Both UPVC foot valves and brass foot valves are durable and long-lasting, but brass foot valves may require more frequent maintenance to prevent corrosion.
