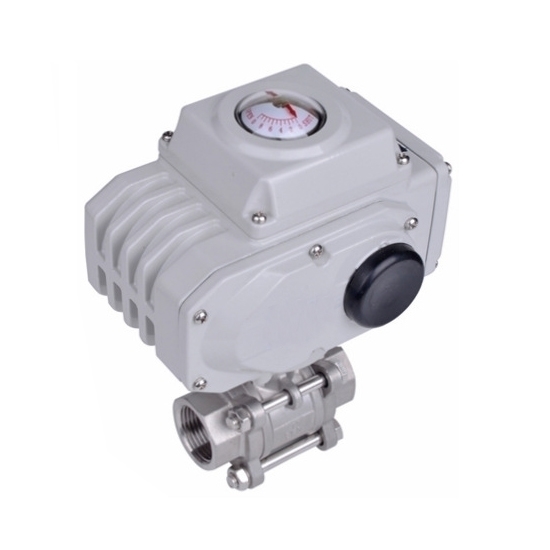

1-1/4" Electric Ball Valve, 2 Way/ 3 Way

5 out of 5 based on 1 reviews | Write a review

$394.69

Favorable price 1-1/4 inch ball valve with aluminum alloy electric actuator for delivering water, air, gas, oil, liquid and other media, selectable 2 way or 3 way, threaded type, flanged type and PVC true union type. DN32 (32mm) port size, PTFE seat material, 50/ 60Hz 110V AC, 220V AC, 380V AC, and 24V DC power supply. High performance and reliable, is convenient for pipeline installation.

Port *
Flow Type *
Flow Type *
Power Supply *

SKU: ATO-EBV-32B

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

1-1/4 inch electric actuated ball valve comes with stainless steel or PVC body material, which is widely used for controlling water, gas, oxygen and other air and fluid in petroleum, chemical industry, power generation, paper making, atomic energy, aviation, rocket and other sectors, as well as daily life.

Specification

Ball Valve	Model	ATO-EBV-32B
	Port Size	1-1/4 inch (DN32, 32mm)
	Ball Valve Type (Optional)	2 Way Threaded Type, 2 Way Flanged Type, 2 Way PVC True Union Type, 3 Way Threaded Type, 3 Way Flanged Type
	Body Material	Stainless Steel (SS 316/ 304), PVC
	Seat Material	Plastic (PTFE)
	Environment Temperature	-10°C to 60°C
	Medium Temperature	-10°C to 180°C
	Medium Pressure	1.6MPa
Electric Actuator	Model	ATO-KLST-05	ATO-KLST-10
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	15N.m, 10s 30N.m, 20s 50N.m, 30s	50N.m, 13s/ 15s 60N.m, 20s 100N.m, 30s
	Actuator Material	Aluminum Alloy
Protection Level		IP68

Note: Threaded ball valve, PVC true union ball valve and 2 way flanged ball valve match with ATO-KLST-05 electric actuator, and 3 way flanged ball valve matches with ATO-KLST-10 electric actuator.

Body Dimension (Unit: mm)

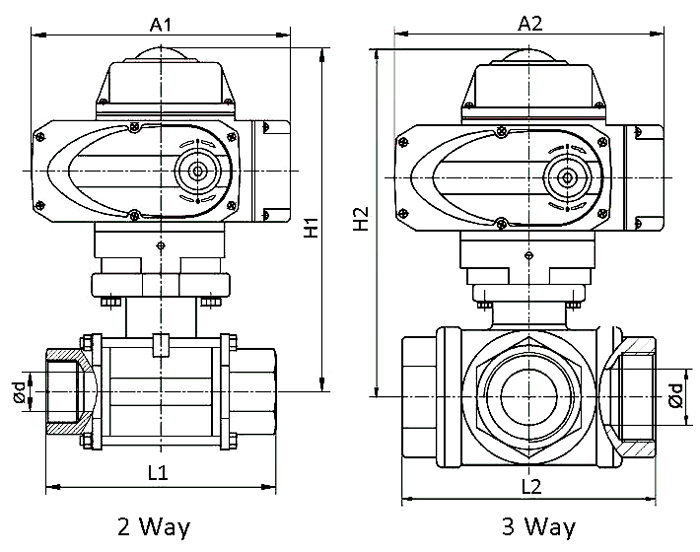

2 way/ 3 way, stainless steel, threaded type

2 way 3 way stainless steel threaded type electric ball valve dimension

φd	L1	A1	A2	H1	L2	H2
32	105	160	160	179	111	178

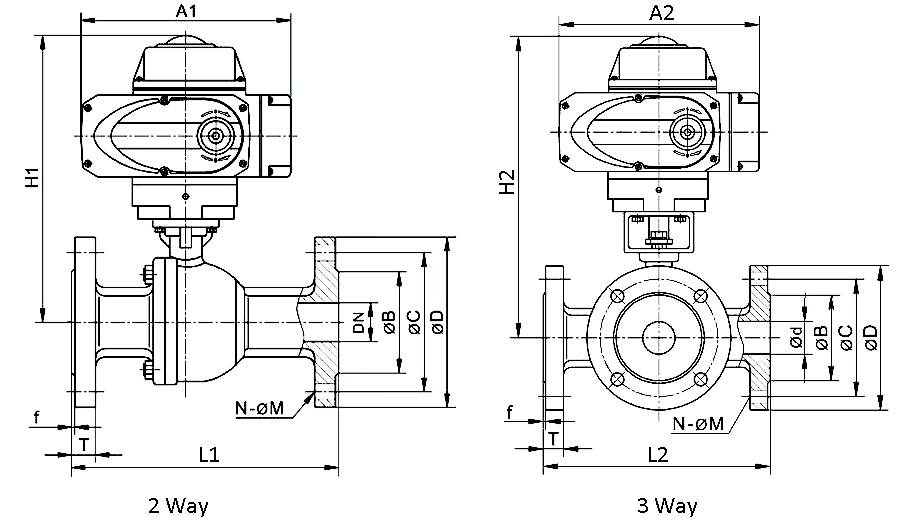

2 way/ 3 way stainless steel, flanged type

2 way / 3 way stainless steel flanged type electric ball valve dimension

DN	L1	T	f	D	B	C	H1	H2	A1	A2	L2	N-M
32	165	16	2	135	78	100	197	230	160	198	200	4-φ14

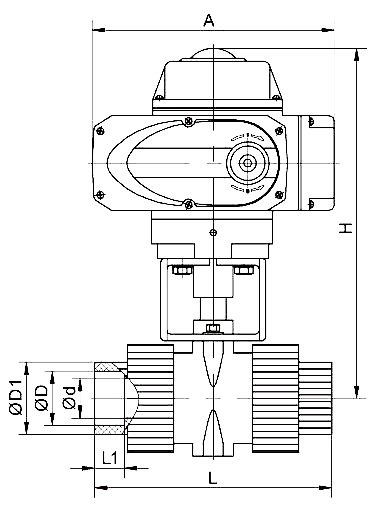

2 way, PVC true union type

2 way PVC pneumatic actuated ball valve dimension

DN	D	D1	d	L1	A	H
32	40	54	30	23	160	233

Three Way Ball Valve Flow Pattern

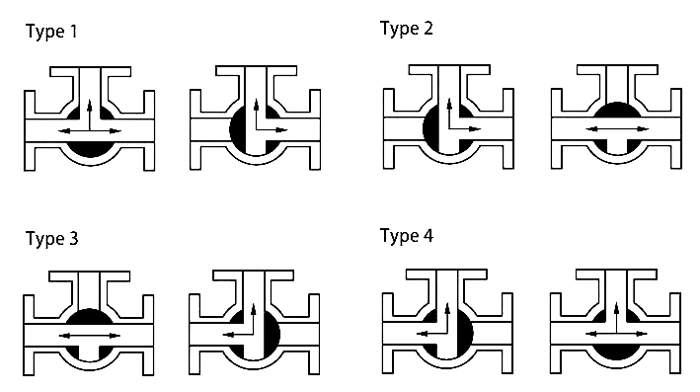

T Type:

3 way pneumatic ball valve flow patterns t port

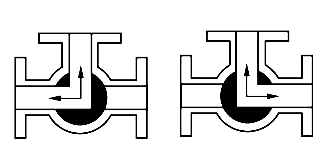

L Type:

3 way pneumatic ball valve flow patterns l port

Tips: Difference between pneumatic ball valve and electric ball valve

The force distance of pneumatic actuated ball valve is larger than that of electric actuated ball valve, the switching speed of pneumatic actuated ball valve can be adjusted, the structure is simple, and it is easy to protect. During the operation, it is not easy to be damaged by jamming due to the buffer characteristics of the gas itself, but it is necessary to have a gas source.
The power source of the electric valve actuator is the power supply, which is generally used in occasions where the environmental requirements are not high and there is no risk.
The response speed of pneumatic ball valve is faster than that of electric ball valve. Generally, the switching time of pneumatic ball valve is about 6 seconds, while the switching time of electric ball valve is generally 15-20 seconds.

Existing reviews of 1-1/4" Electric Ball Valve, 2 Way/ 3 Way

High performance ball valve

This 1-1/4" electric ball valve is pretty great. It installs easily and functions perfectly. I am using it as a very large unloader valve for my air compressor because of the added volume of air to bleed off with the air cooler and condensation system I built. It works great and definitely recommends it.

From: Boggess | Date: 11/01/2023

Was this review helpful? Yes No (0/0)

Load more reviews...

Write your review for 1-1/4" Electric Ball Valve, 2 Way/ 3 Way
