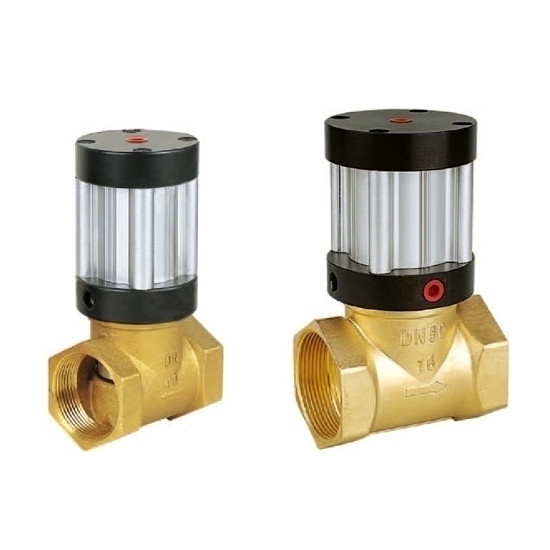

1-1/2" Air Control Valve, 2 Way, 2 Position

Hot selling 2 way air controlled valve is a pneumatic piston valve, suitable for neutral liquid and gaseous medium, with single acting or double acting. 1-1/2 inch (DN40) air flow control valve is widely used in food and medicine, industry, washing and paint, and automobile manufacturing.

Specifications

• Model: ATO-Q22HD-40
• Nominal Diameter: DN40
• Connecting Thread: ZG1-1/2"
• Actuator: Pneumatic Actuator
• Type: 2 Way, 2 Position
• Product Form: Normally Closed
• Working Pressure: 0~1.0Mpa
• Valve Body Material: Brass
• Sealing Material: VITON/PTFE
• Medium Temperature: VITON: -5~150℃, PTFE: -10~180℃
• Flow Coefficient KV Value: 25
• Weight: 1.427kg
• Working Medium: Air, Water, Oil, Liquefied Petroleum Gas, and Fluid with Light Dynamic Viscosity

Dimensions (Unit: mm)

Applications

The air control valve has low starting pressure, high closing sensitivity, good sealing performance, and arbitrary import and export directions, widely used in food, medicine, industry, washing, petrochemical, metallurgy, spraying, vehicles and other mechanical equipment.

Tips: What is an air-controlled valve used for?

• On/off control: Air-controlled valves can be used to turn the flow of fluids on or off, either manually or automatically. They are often used in applications where it is important to stop or start the flow of fluid quickly, such as in emergency shut-off systems.
• Flow control: Air-controlled valves can be used to regulate the flow of fluid through a pipeline or process. By adjusting the amount of air pressure, the valve can be opened or closed to control the rate of fluid flow.
• Pressure control: Air-controlled valves can be used to control the pressure of fluids in a system. By regulating the amount of fluid that is allowed to pass through the valve, the pressure can be increased or decreased as needed.
• Temperature control: Air-controlled valves can be used to control the temperature of fluids in a system. By regulating the flow of hot or cold fluids, the temperature of the system can be maintained at a desired level.
