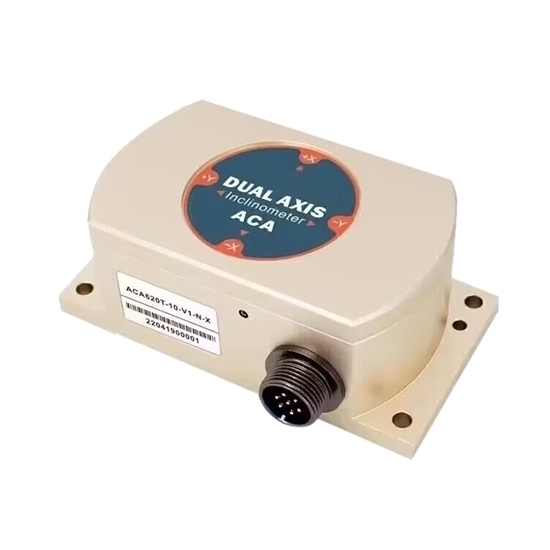

    Inclinometer Sensor, Output 0-5V, ±10°~±90°

    5 out of 5 based on 1 reviews | Write a review
    $949.85
    The provided inclinometer sensor is a tilt detection sensor, available with output 0-5V voltage, optional measuring range ±10°/±30°/±60°/±90°, Maximum measurement accuracy 0.003°, zero temperature coefficient ±0.008°/℃. Single axis/dual axis tilt switch, horizontal or vertical installation for selection.
    *
    *
    *
    SKU: ATO-IMS-610620
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Factory price industrial inclinometer sensor features 1 axis or 2 axis, full-temperature compensation, output signal 0-5V and measuring range ±10°/±30°/±60°/±90°. High precision tilt sensor is suitable for detecting the tilt of an object concerning gravity. Horizontal or vertical installation is optional.

    Features

    • Full-temperature compensation single/dual axis inclinometer sensor, analog voltage output. It uses a high-precision 24 bit A/D differential converter inside to ensure the linearity of the output voltage signal. Users don't need to make linearity corrections by themselves, it can be used after installation, which is stable and reliable.
    • Because the system integrates a high-resolution temperature sensor, and cooperates with the MCU central processing system for secondary temperature compensation, the full temperature zero temperature drift can be controlled at ±0.008°/℃, and the measured accuracy of the small range at room temperature can reach 0.003°.
    • The features of non-contact installation make the inclinometer sensor have good system integration. Just fix the tilt sensor on the surface of the object to be measured with screws, and the inclination angle of the object can be automatically calculated. Simple operation and convenient installation.
    • The inclinometer sensor adopts MEMS technology, small size, strong ability to resist external electromagnetic interference, strong ability to withstand shock and vibration, and it is widely used in the field of industrial measurement.

    Technical Specification

    Model ATO-ACA610T/ACA620T-N Condition
    Measuring Axis X/XY (single/dual) X/XY (single/dual) X/XY (single/dual) X/XY (single/dual) -
    Measuring Range* ±10° ±30° ±60° ±90° -
    Zero Output 2.5V 2.5V 2.5V 2.5V 0° output
    Resolution 0.0007° 0.0007° 0.0007° 0.0007° -
    Measuring Accuracy 0.003° 0.01° 0.02° 0.03° @25℃
    Long Term Stability 0.01° 0.02° 0.03° 0.04° -
    Zero Temperature Coefficient ±0.0005°/℃ ±0.0005°/℃ ±0.0005°/℃ ±0.0005°/℃ -40~85℃
    Sensitivity Temperature Coefficient ≤50 ppm/℃ ≤50 ppm/℃ ≤50 ppm/℃ ≤100 ppm/℃ -40~85℃
    Power On Time 0.5s 0.5s 0.5s 0.5s -
    Response Time 0.02s 0.02s 0.02s 0.02s -
    Response Frequency 1~20Hz 1~20Hz 1~20Hz 1~20Hz -
    Output Signal 0-5V
    Electromagnetic Compatibility According to EN61000 and GBT17626
    MTBF ≥50000 hours/times
    Insulation Resistance ≥100MΩ
    Shockproof 100g@11ms, 3 Times/Axis (half sinusoid)
    Anti-Vibration 10grms, 10~1000Hz
    Protection Grade IP67
    High Seismic Performance >2000g
    Cables Standard 2m length, wearproof, wide temperature, shielded cables 5P*5.7mm, aviation connector
    Dimension 92*48*36mm
    Weight 235g (without cable)

    *Note: This Technical data only list ±10°, ±30°, ±60°, ±90° series for reference, other measuring range please refer to the adjacent specifications.

    Electrical Specification

    Item Min Standard Max Condition
    Power Supply 9V 12V, 24V 36V Standard
    Working Current - 40mA - -
    Output Load 10kΩ - - Resistive
    - - 20nF Capacitive
    Working Temperature -40℃ - +85℃ -
    Store Temperature -55℃ - +100℃ -

    0-5V Inclinometer Sensor Electrical Wiring

    • Single Axis Wiring Definition
    Line Color Function RED WHITE GREEN BLACK GRAY
    DC 11.5-36V
    Power positive
    Out X
    X axis output voltage
    NC GND
    Power negative
    Signal GND

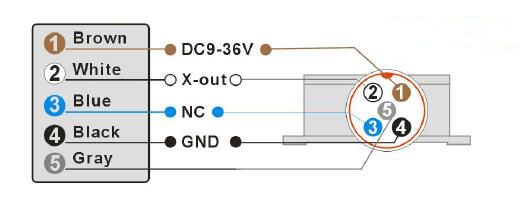

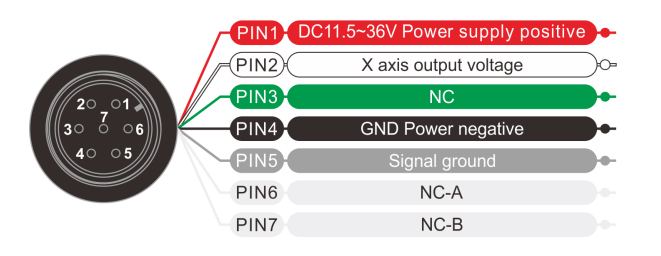

    0-5v single axis inclinometer sensor wiring

    • Dual Axis Wiring Definition
    Line Color Function RED WHITE GREEN BLACK GRAY
    DC 11.5-36V
    Power positive
    Out X
    X axis output voltage
    Out Y
    Y axis output voltage
    GND
    Power negative
    Signal GND

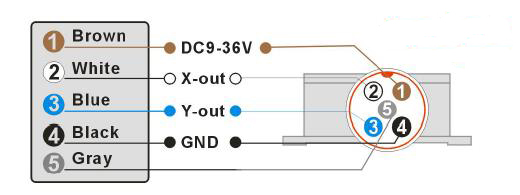

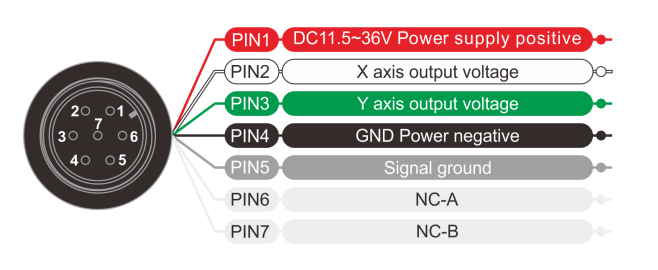

    0-5v dual axis inclinometer sensor wiring

    0-5V Inclinometer Sensor Dimensions Diagram

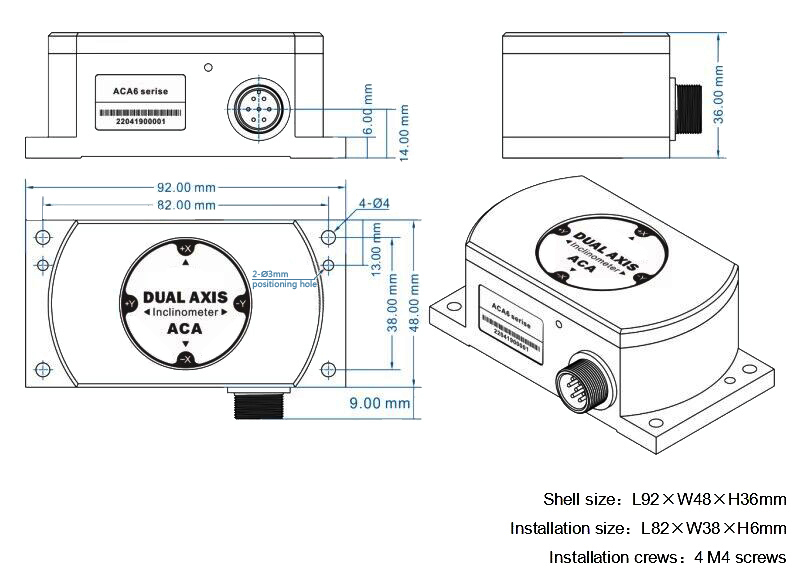

    0-5v inclinometer sensor dimension

    *Signal ground: Output voltage signal. Connect the GND of acquisition device.

    Inclinometer Sensor Installation Direction Diagram

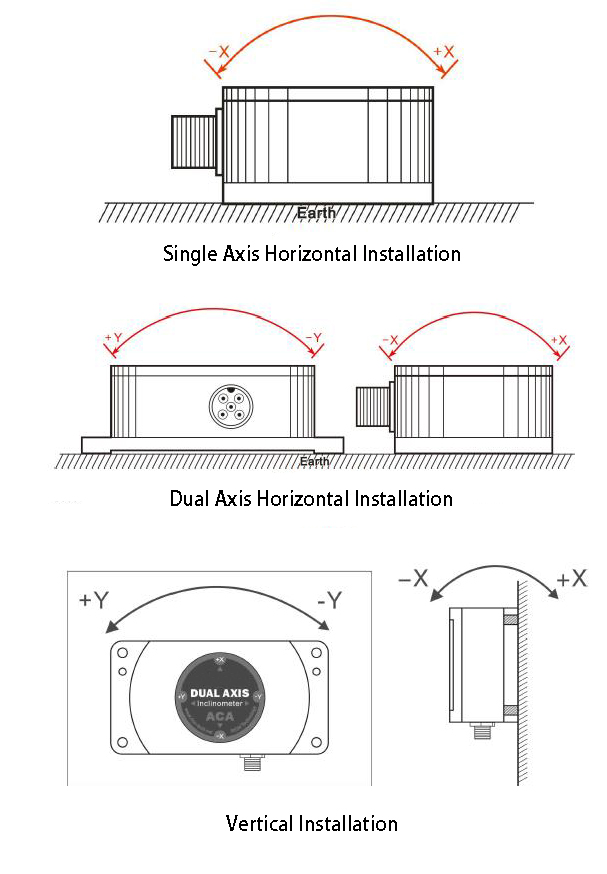

    The installation must guarantee the inclinometer sensor bottom is parallel to measured face, and reduce the influence of dynamic and acceleration to the tilt sensor. This inclinometer sensor can be installed horizontally or mounted vertically, for installation please refer to the following scheme.

    Installation of 0-5v inclinometer sensor, temperature compensation, 10°-90°

    Tips: Factors that affect actual measurement accuracy of inclinometer sensor.

    1. There is a certain deviation between the sensitive axis of inclinometer sensor and the housing. This deviation is a spatial position, not just a position on a plane coordinate system.
    2. When installing the inclinometer sensor, the actual tilt axis will not coincide with or parallel to the edge of the sensor's sensitive axis/housing, and it is difficult to achieve such a precise installation.
    3. The actual tilt axis of object is difficult to find accurately in the industrial field. Even if it is currently found, the actual tilt axis will continue to change with the movement due to the error of mechanical equipment.
