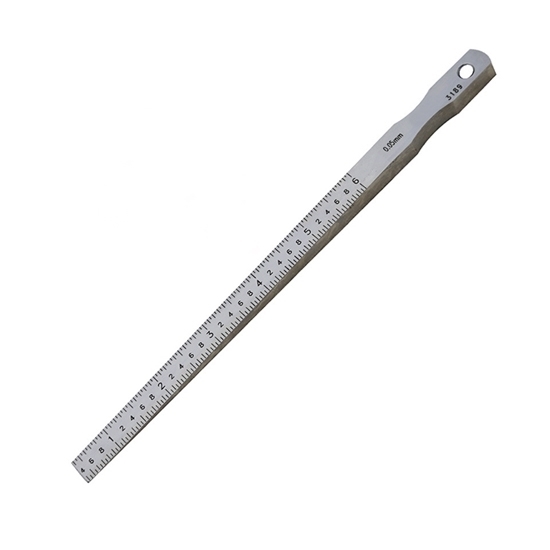

0.4-6mm Stainless Steel Feeler Gauge

0.4-6mm Stainless Steel Feeler Gauge

$69.31

Lower cost feeler gauge is made of stainless steel, which is more durable, with a 0.4-6mm measuring range, a division value of 0.05mm, and a blade length of 150mm. The gap gauge is easy and convenient to take and store.

SKU: ATO-FG-046

This product has a minimum quantity of 2

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

High-accuracy stainless steel feeler gauge with 0.4-6mm measuring range, 0.05mm division value. There is some anti-rust oil on the stainless steel feeler gauge to prevent it from becoming rusty.

Specification

Model: ATO-K06D
Measuring Range: 0.4-6mm
Division value: 0.05mm
Blade Length: 150mm
Material: 304 stainless steel
Weight: 500g

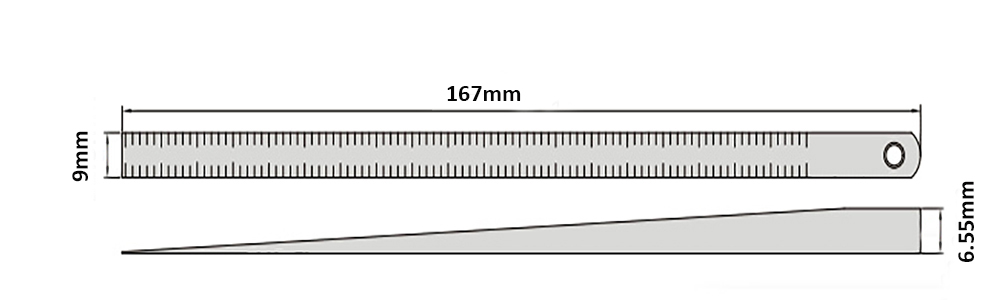

Dimension

Application

Tips: What is a feeler gauge?

The feeler gauge is composed of a set of thin steel sheets with different thickness steps. Feeler gauges are used to measure gap dimensions. When checking whether the estimated size is qualified, it can be judged by the go-stop method, or by the inspector according to the degree of tightness of the fit between the feeler gauge and the surface to be tested.
