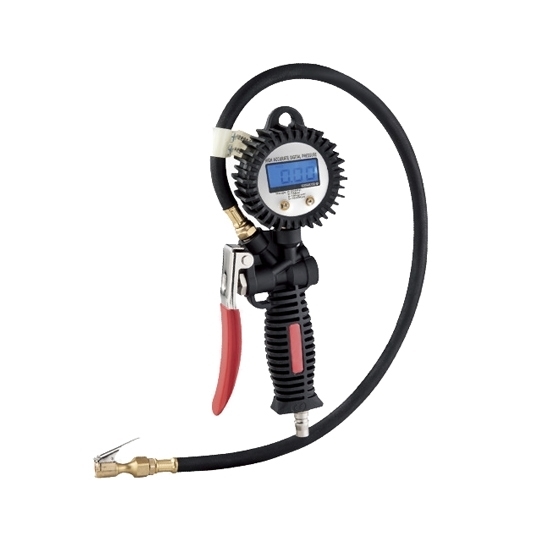

0~260 psi Tire Inflator with Digital Pressure Gauge

Economical price tire inflator with digital pressure gauge is used for tire pressure checking, tire inflating and tire pressure releasing for various vehicle. It come with ergonomic handle, portable and easy to operate.

Specification

• Model: ATO-TG-18A1
• Measuring Medium: Gas
• Pressure Measurement Range: 0~260 psi (0~18 bar)
• Working Pressure: 0~116 psi (0~8 bar)
• Working Temperature: -20°C ~ 60°C
• Gauge Accuracy: ±1 psi
• Display: LCD Display
• Display Unit: psi, bar, Kgf/cm², KPa
• Air Inlet: Customizable
• Pressure Gauge Diameter: 80mm
• Dimension: 900mm (L) * 110mm (W) * 282mm (H)

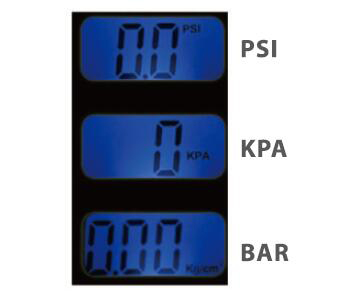

Digital Pressure Gauge Display

Tips for tire inflation

1. Check the air pressure with a tire pressure gauge at any time, so as not to burst the tire due to excessive inflation.
2. After stopping driving, you must wait for the tire to dissipate heat before inflating, because the temperature of the tire will rise when the vehicle is running, which will affect the air pressure.
3. Check the air valve. If the valve and the valve core are not matched smoothly, there are protrusions and recesses and other defects, it will be inconvenient to inflate and measure the air pressure.
4. Pay attention to cleaning when inflating. The air filled can not contain moisture and oil, in case the inner tube rubber deteriorates and is damaged.
5. When inflating, it should not exceed the standard air pressure, and it should not be inflated too much because it cannot be inflated after going out for a long time. If it exceeds the standard too much, the cord will be stretched too much, causing its strength to decrease and affecting the life of the tire.
6. Before inflating, wipe off the dust on the valve, and do not loosen the valve core. After inflating, apply soapy water to the valve to check for air leakage, and tighten the valve cap to prevent sediment into the interior of the valve.
7. The tire pressure gauge is checked regularly to ensure the accuracy of the air pressure check.
