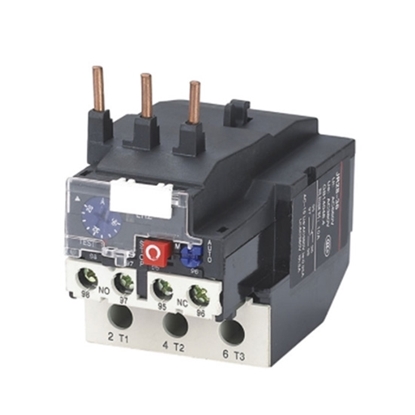

    0.1~6 Amp Thermal Overload Relay, 220V, 3-Phase

    5 out of 5 based on 1 reviews | Write a review
    $45.61
    Low price thermal overload relay for sale. 8 current setting ranges for selection, minimum 0.1A, maximum 6A, rated operational current 25A, rated working voltage 3-phase 220V~690V, insulation voltage 690V, phase failure protection function, matching 9A contactor and 2A gG fuse breaker.
    *
    SKU: ATO-TOR-016
    This product has a minimum quantity of 2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3-phase thermal overload relay has functions of overcurrent and phase-failure protection for AC motors. It is used to provide overload protection open-phase protection and protection against unbalanced current for motors and it can also avoid heating in electrical equipment. Current setting range 0.1A~6A, current rating 25A, working voltage 220V~690V. Cheap thermal relay, can used with 9A contactor and 2A gG fuse breaker.

    Specification

    Model ATO-JR28-25
    Current Setting Range (A) 0.1-0.16 0.16-0.25 0.4-0.63 0.63-1 1-1.6 1.6-2.5 2.5-4 4-6
    Matching Fuse Breaker (A) gG 2 2 2 4 4 6 10 16
    aM 0.25 0.5 1 2 2 4 6 8
    Trip Class 9A
    Frame Current (A) 25A
    Rated Working Voltage (V) 3-phase 220V~690V
    Rated Insulation Voltage (V) 690V
    Number of Contacts 1NO + 1NC
    Phase Failure Protection Function yes
    Automatic & Manual Reset yes
    Temperature Compensation yes
    Tripping Indicator yes
    Test Pushbutton yes
    Mounting Mode Plug-in, independent
    AC-15 220V Current Rating (A) 2.73
    AC-15 220V Current Rating (A) 1.58
    DC-13 220V Current Rating (A) 0.2

    Details

    0.1~6 Amp Thermal Overload Relay Details

    Thermal Overload Relay Applications

    • Thermal overload relays are often used in circuit protection, overload, phase failure, overtime start and locked-rotor for AC motors.
    • Thermal overload relay has functions of phase failure protection, temperature compensation, adjustable setting current, automatic or manual reset, operation indicator, NC and NO auxiliary contacts separate insulation.
    • The thermal overload relay has small installation area and various mounting methods. It has test button and stop button, which is convenient for checking the flexibility of operation.
    • The protective cover of thermal overload relay can protect fingers from electric shock. The locking device can prevent misoperation.
    • Thermal overload relay comes with remote operation, complete functions and excellent quality.

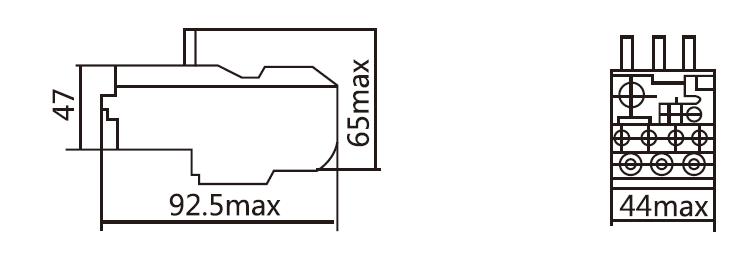

    0.1~6 Amp Thermal Overload Relay Dimension Diagram (Unit: mm)

    Dimension diagram of 0.1~6 Amps Thermal Overload Relay, 220V, 3-Phase

    Cross Section Area of Conductor

    Main Circuit Single core or standard wire 1~4 mm2
    Wiring screw M4
    Auxiliary Circuit Single core or standard wire 0.5~2.5 mm2
    Wiring screw M3.5

    Tips: What is a 3 phase thermal overload relay?

    Thermal overload relay is also called thermal relay, which is a 3 phase overload relay, using the principle of current thermal effect, using electrical thermosensitive bimetal as sensitive components. The electrical thermosensitive bimetal sheet is heated and rolled by two alloys with a large difference in linear expansion coefficient. When heated, the bimetallic sheet bends from the high expansion layer (active layer) to the low expansion layer (passive layer). When the current is too large (exceeding the set value), the element will act due to heating. Then, its linked movable-break contact cuts off the power supply of the controlled circuit and the protected equipment.

    3-phase thermal overload relays are used for AC motor overload protection, and there are many types. 3-phase thermal overload relay is easy to install and use, has complete functions and low price. Practice has proved that thermal overload relays can reliably protect AC motors, so they have been widely used for a long time.
